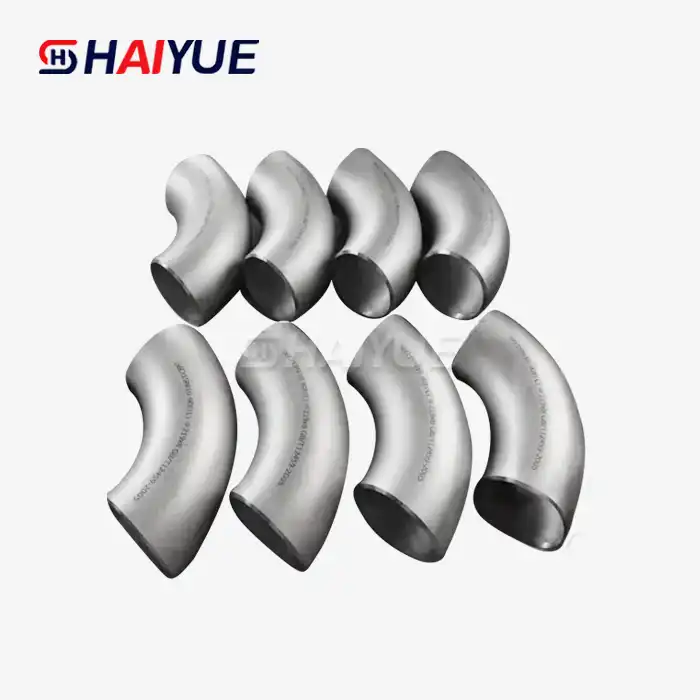

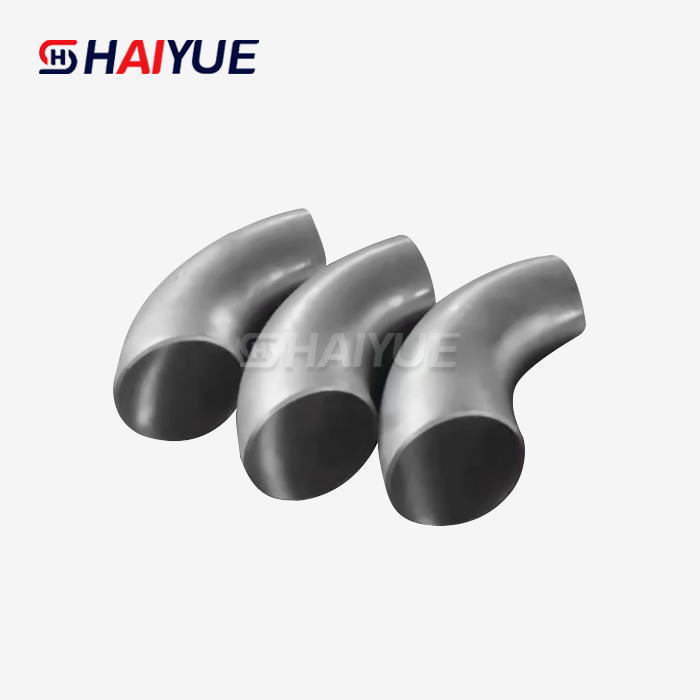

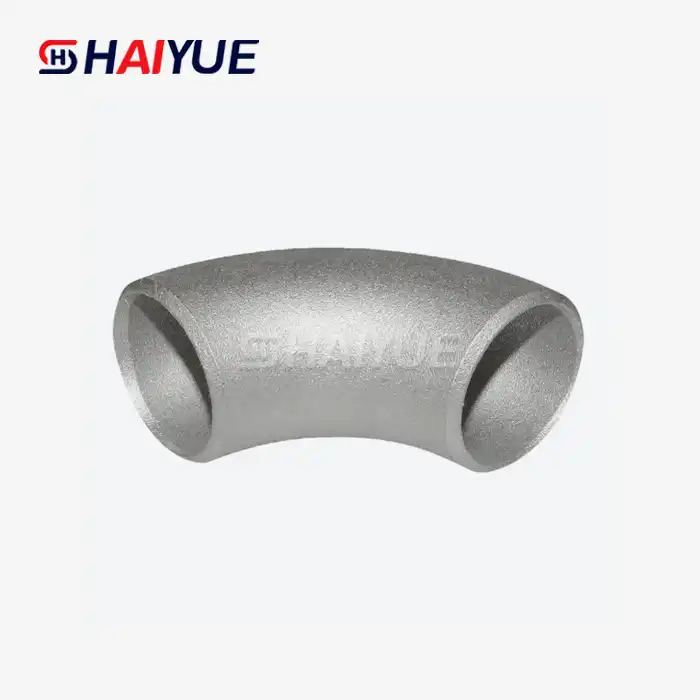

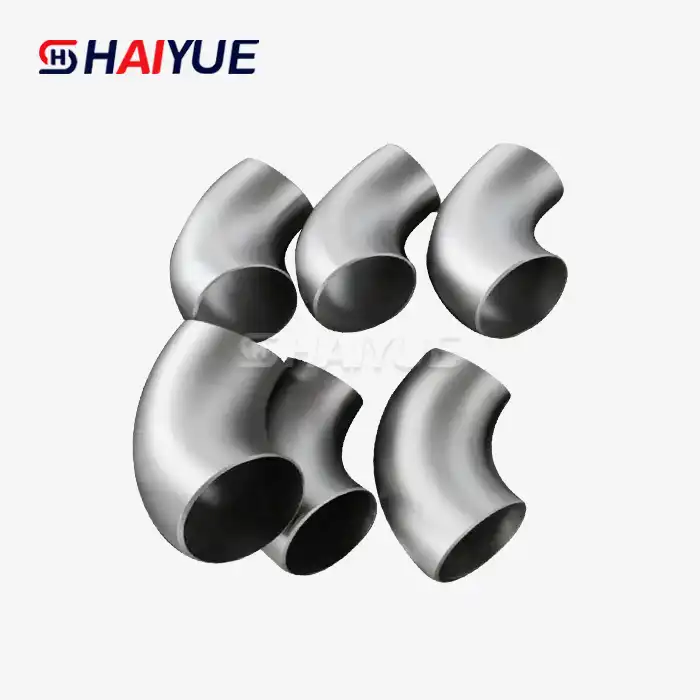

Gr7 Titanium alloy elbow

Gr7 Titanium Alloy Elbow – Product Details

Product Introduction

The Gr7 Titanium Alloy Elbow is a critical component in various high-performance applications where durability, corrosion resistance, and strength are paramount. Made from Titanium Grade 7 (Ti-0.15Pd), this alloy is known for its excellent resistance to corrosion, especially in aggressive environments like marine, aerospace, and chemical processing industries. Gr7 titanium elbows are ideal for systems that require lightweight yet high-strength material solutions.

Baoji Haiyue New Metal Materials Co., Ltd. manufactures these premium-grade titanium elbows with precision to meet international standards and offer exceptional performance. Whether you are in aerospace, energy, medical devices, or chemical processing, our Gr7 titanium alloy elbows are designed to meet the most demanding specifications.

Technical Specifications

Main Production Grades and Standards:

Product Features (Key Features)

• Exceptional Corrosion Resistance: Gr7 titanium alloy offers superior resistance to acids, alkalis, and chloride environments, ensuring long-term durability.
• Lightweight and Strong: Despite its lightweight, Gr7 titanium has high tensile and yield strength, making it ideal for applications where both strength and weight are critical factors.
• Biocompatibility: Non-toxic and biocompatible, making it perfect for use in medical implants and surgical devices.
• High Temperature Resistance: With a melting point of 1,668°C, Gr7 titanium can perform well in high-temperature applications.
• Customization: Available in a wide range of sizes and specifications to fit the needs of specific industries.

Applications

Gr7 Titanium Alloy Elbows are used in various demanding industries, including:

• Aerospace & Aviation: For aircraft and spacecraft components requiring lightweight, high-strength material resistant to extreme conditions.
• Medical Devices: Used in implants and surgical instruments, as titanium is biocompatible and corrosion-resistant.
• Chemical Processing: Ideal for reactors, pipes, and storage tanks that need to withstand corrosive chemicals.
• Energy Sector: Applied in nuclear power plants, wind turbines, and solar energy systems.
• Marine Engineering: Utilized for offshore structures and shipbuilding due to excellent resistance to saltwater corrosion.
• Industrial Manufacturing: For durable, high-performance parts such as tools, fasteners, and machinery components.

Manufacturing Process

At Baoji Haiyue, we employ advanced manufacturing processes to produce Gr7 titanium alloy elbows. Our production process includes:

1. Raw Material Selection: High-purity titanium and palladium are sourced from trusted suppliers to ensure product quality.
2. Forming & Shaping: Titanium billets are heated and forged using advanced machinery, followed by cold working and shaping to create elbows of various sizes.
3. Welding & Assembly: Using precision welding techniques like TIG (Tungsten Inert Gas) welding, we ensure strong, seamless connections.
4. Surface Treatment: To enhance corrosion resistance and surface quality, our elbows undergo various surface treatments such as acid pickling and passivation.
5. Quality Control: Rigorous testing and inspections, including ultrasonic, eddy current, and tensile testing, ensure every elbow meets our high standards.

Quality Assurance

We prioritize quality at every stage of production to ensure that our Gr7 Titanium Alloy Elbows are of the highest standards:

• ISO 9001:2015 Certification for quality management systems.
• Advanced Testing Facilities: Ultrasonic testing, spectral analysis, and visual inspection for product integrity.
• Stringent Compliance: Adherence to ASTM, ASME, and other relevant international standards ensures consistent performance.

Packaging and Logistics

To ensure safe and secure delivery, we package each Gr7 Titanium Alloy Elbow carefully:

• Packaging: Each product is individually wrapped in corrosion-resistant materials and cushioned with foam inserts to prevent damage.
• Shipping: We provide global shipping via air, sea, and land, ensuring timely delivery to all regions.
• Tracking: All shipments are tracked, allowing you to monitor the progress of your order in real-time.

Customer Support

Our customer support team is available to assist you with:

• Product Inquiries: Get in touch to learn more about our Gr7 Titanium Alloy Elbow and its specifications.
• Technical Support: Our engineers are available to help you with material selection, product customization, and application advice.
• After-Sales Support: We provide global after-sales service to ensure that your experience with our products meets your expectations.

Why Choose Us

• Complete Product Range: We offer a broad range of titanium and other non-ferrous metal products for diverse industries.
• Full-Process Production: From raw material sourcing to final product delivery, we handle every step of the production process.
• Global Sales & Agency: Our products are distributed globally, and we have a network of agents worldwide.
• Custom Solutions: We specialize in providing customized products tailored to your specific requirements.
• Fast Delivery & Timely After-Sales Service: With a focus on customer satisfaction, we ensure quick turnaround times and reliable after-sales service.

Development History

Product Quality Management

Appearance and size inspection

Tensile test

Bending test

Chemical composition analysis

Electrochemical performance test

Ultrasonic test

Eddy current test

Thickness test

Production and Processing

Titanium sponge raw materials

Titanium sponge processing and smelting

Titanium ingot forging

Machining

Manual grinding and polishing

Manual testing

Workshop and Equipment

​​​

​​​​



​​​​



​​​

​​​​



​​​​



​​​​



​​​​



​​​​



Packaging

​​​​







​

Main Products

​​​

Titanium Anode

​​​

Sinrer-metal-powder-filters



Titanium Rod

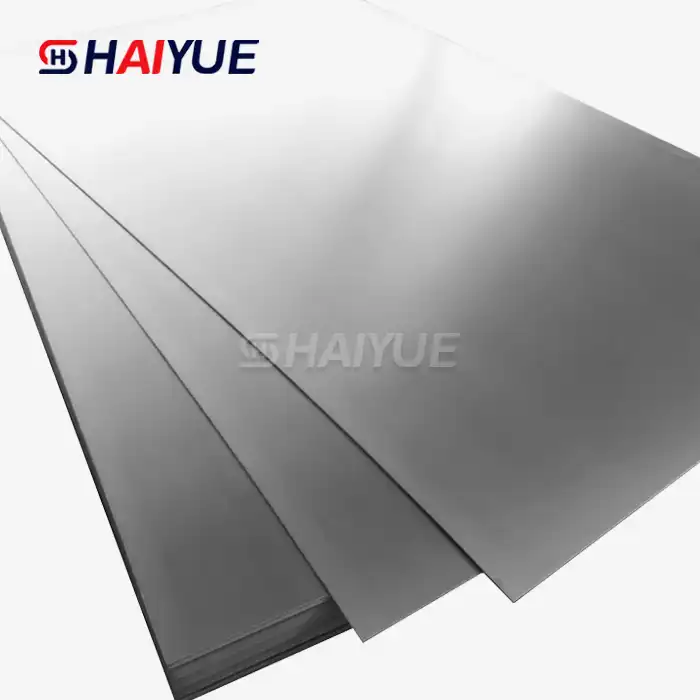

Titanium Plate

Titanium Elbow

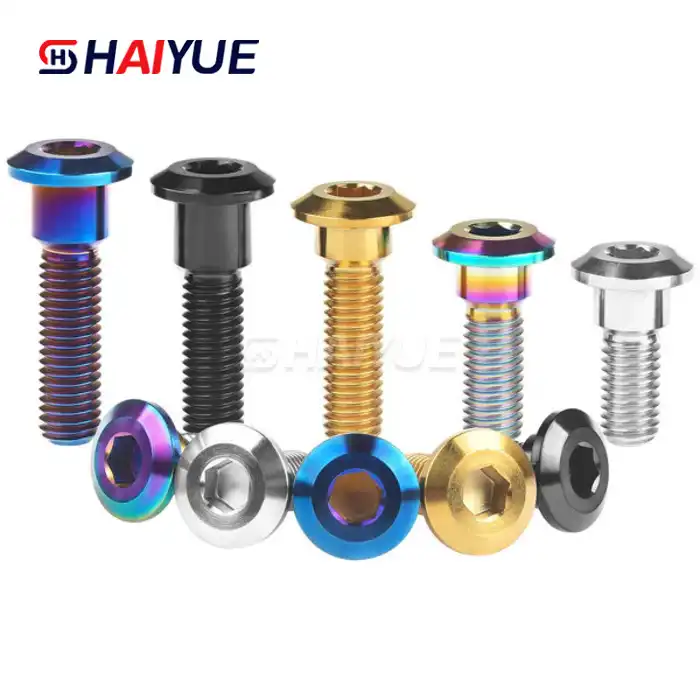

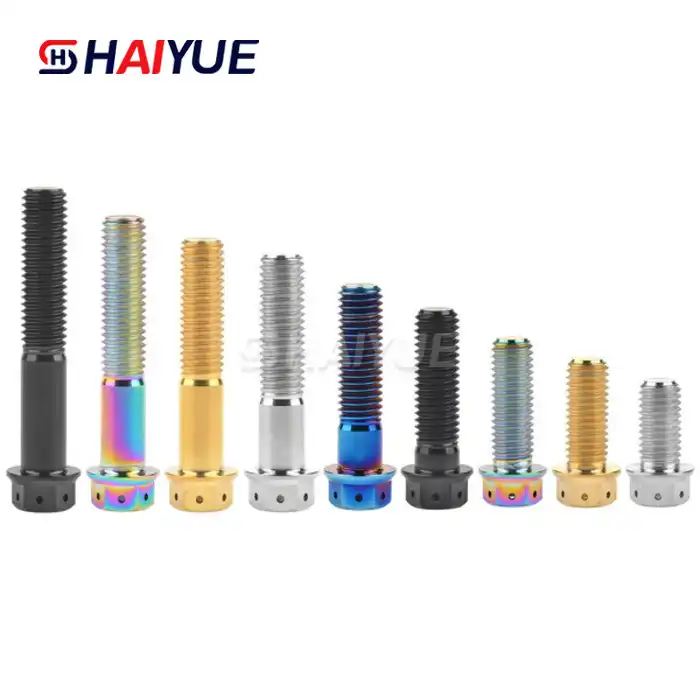

Titanium Screw

Applied Industries

Be used in a wide range of industries.



​​​​

Electrolytic copper foil manufacturing industry

​​​​

Hydrometallurgy industry

​​​​

Sewage treatment industry

​​​​

Cyclone electrolysis industry

​​​​

Etching liquid electrolysis recovery industry

​​​​

Electrolytic sodium hypochlorite industry

OEM Services

We offer OEM services, including:

• Custom Design: Tailored sizes and shapes to fit your specific project needs.
• Bulk Orders: Competitive pricing for large-scale orders.
• Product Development: Collaborate with our engineering team to create specialized products for your unique applications.

Frequently Asked Questions (FAQs)

1. What is the composition of Gr7 Titanium Alloy?
Gr7 Titanium Alloy consists of titanium with a small addition of 0.15% palladium (Pd) to enhance corrosion resistance.

2. What industries use Gr7 Titanium Alloy Elbows?
Industries such as aerospace, medical, energy, chemical processing, and marine engineering frequently use Gr7 titanium elbows for their excellent strength-to-weight ratio and corrosion resistance.

3. How do I choose the right size of Gr7 Titanium Alloy Elbow?
The right size depends on your system's requirements, including pressure, temperature, and flow rate. Consult our technical support team for assistance.

4. Are Gr7 Titanium Alloy Elbows available in custom sizes?
Yes, we offer customization services to meet your specific requirements.

5. How can I get a quote for Gr7 Titanium Alloy Elbows?
You can reach out to us via email or phone for a detailed quote based on your specific needs.

Contact Details

For more information or to request a quote, please contact us:

• Email:Jolina@bjhyti.com
• Phone: +86-18392721678

Get in touch today to learn more about our Gr7 Titanium Alloy Elbows and how they can benefit your projects!
