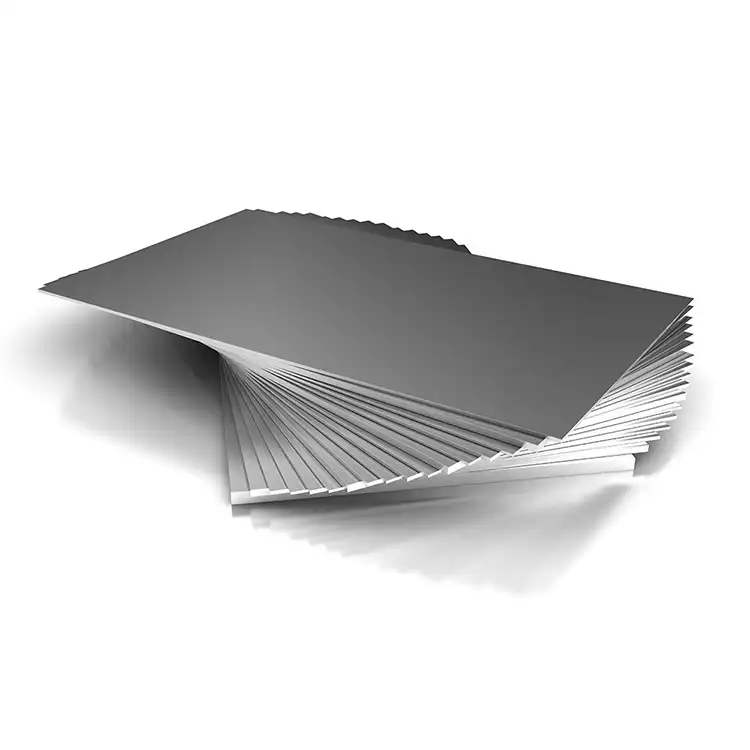

016 titanium sheet

1.High strength and exceptional corrosion resistance guaranteed.
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.
Product Description

016 Titanium Sheet – Product Details Page

Product Introduction

016 Titanium Sheet is a high-performance material widely used in various demanding industries due to its outstanding properties, including high strength, excellent corrosion resistance, and light weight. Produced by Baoji Haiyue New Metal Materials Co., Ltd., this titanium sheet is manufactured using cutting-edge technology to meet international standards and is ideal for applications requiring durability and reliability.

As a leading supplier in the titanium and rare metals industry, Baoji Haiyue offers 016 titanium sheet that is suitable for aerospace, medical, energy, chemical processing, and many other industries. This material is designed to deliver top-tier performance in the harshest environments.


Technical Specifications

Here are the detailed technical specifications of the 016 titanium sheet, including its properties, dimensions, and grades according to international standards.

General Specifications for 016 Titanium Sheet

Property Value
Material Titanium (Ti)
Grade Commercially Pure (CP) Titanium
Thickness Range 0.5 mm to 50 mm
Width Range 100 mm to 2000 mm
Length Range Up to 4000 mm
Surface Finish Mill finish, pickled, polished
Tensile Strength (MPa) 400-550
Yield Strength (MPa) 275-480
Elongation (%) 15-25%
Hardness (Rockwell C) 35-40
Density (g/cm³) 4.43
Modulus of Elasticity (GPa) 110
Melting Point (°C) 1668

Production Grades and Standards for 016 Titanium Sheet

Standard (Country) Grade Composition (Min. %) Application Area
USA (ASTM) ASTM B265 GR.1 Ti: Balance, O: 0.18 max, N: 0.03 max Aerospace, Medical
Russia (TU) TU 48-20-2385-2015 Ti: Balance, Fe: 0.10 max, O: 0.18 max Chemical Processing
Japan (JIS) JIS H 4600-2003 Ti: Balance, C: 0.08 max, N: 0.05 max Marine Engineering
European (EN) EN 3.7025 Ti: Balance, O: 0.18 max Industrial Use

Mechanical Properties for 016 Titanium Sheet

Property ASTM B265 GR.1 JIS H 4600-2003 TU 48-20-2385-2015
Yield Strength (MPa) 275-480 270-480 250-470
Ultimate Tensile Strength (MPa) 400-550 400-550 380-550
Elongation (%) 15-25 16-25 15-25
Hardness (Rockwell C) 35-40 35-40 30-40
Modulus of Elasticity (GPa) 110 110 105

titanium plates titanium plates titanium plates titanium plates
titanium plates titanium plates titanium plates titanium plates

Product Features (Key Features)

  • Corrosion Resistance: Excellent resistance to corrosion, especially in saltwater environments, making it ideal for marine and chemical industries.
  • Lightweight and Strong: Offers high strength-to-weight ratio, ensuring durability without adding excess weight, essential in aerospace and automotive applications.
  • Biocompatibility: Non-toxic and highly biocompatible, making it a preferred choice for medical implants, prosthetics, and surgical instruments.
  • Thermal Stability: Performs well in high-temperature applications, maintaining structural integrity under extreme conditions.
  • Customization: Available in various thicknesses, lengths, and surface finishes to meet specific project requirements.
  • Environmental Friendliness: Manufactured with eco-friendly processes that comply with sustainability practices.

Applications

The 016 titanium sheet is utilized across a wide range of industries due to its superior performance. Some common applications include:

  • Aerospace: Aircraft and spacecraft components, such as wings, frames, and engines.
  • Medical Devices: Surgical instruments, dental implants, and prosthetics, thanks to its biocompatibility.
  • Chemical Processing: Components in reactors, pipes, and storage tanks exposed to corrosive chemicals.
  • Energy: Parts for nuclear power plants, solar panels, and wind turbine components.
  • Marine Engineering: Shipbuilding, offshore oil rigs, and marine infrastructure requiring corrosion resistance in saltwater environments.
  • Industrial Manufacturing: Tools, fasteners, and machinery parts for high-stress applications.

Manufacturing Process

At Baoji Haiyue, the 016 titanium sheet is produced using state-of-the-art processes, including:

  1. Hot Rolling: Titanium ingots are heated and rolled into thin sheets under high pressure.
  2. Cold Rolling: Further refinement of thickness and surface quality is achieved through cold rolling techniques.
  3. Annealing: To enhance the material’s properties, the titanium sheet undergoes heat treatment to relieve stress and improve ductility.
  4. Surface Treatment: Pickling and polishing processes are used to provide a smooth finish and remove any oxidation or impurities.
  5. CNC Machining: For precision cutting and customization of dimensions and shapes as per customer requirements.

Quality Assurance

Quality is paramount at Baoji Haiyue. Our comprehensive quality management system ensures that every 016 titanium sheet meets rigorous standards. We perform a wide range of tests, including:

  • Ultrasonic Testing: To detect any internal defects.
  • Spectral Analysis: For precise composition verification.
  • Hardness and Tensile Testing: Ensuring strength and durability.
  • Dimensional Inspections: To verify the accuracy of measurements.

Our products are certified to ISO9001:2015, AS9100D, and GJB9001C:2007, ensuring the highest levels of quality and reliability.


Packaging and Logistics

We take great care in packaging our 016 titanium sheet to ensure safe delivery. Each sheet is carefully wrapped to prevent damage during transit, and we provide a range of packaging options based on customer requirements. We offer:

  • Customized Packaging: Suitable for bulk or small orders.
  • Global Shipping: Fast and reliable shipping options worldwide, including door-to-door service.
  • Shipping Insurance: Full insurance coverage during transit for added peace of mind.

Customer Support

At Baoji Haiyue, customer satisfaction is our top priority. Our dedicated customer support team is available to assist with:

  • Technical Support: Helping with material selection, applications, and certifications.
  • Order Tracking: Keeping customers informed about the status of their orders.
  • After-Sales Service: Providing prompt assistance in case of any issues after purchase.

For assistance, reach out to us at jolina@bjhyti.com or call us at +86-18392721678.


Why Choose Us

  • Complete Product Range: We offer a wide variety of titanium and other non-ferrous metal products.
  • Full-Process Production: From raw material to final product, we control the entire process.
  • One-Stop Solution: We provide tailored solutions for all your material needs, ensuring the best results for your projects.
  • Global Sales & Agency: We serve clients worldwide, ensuring timely deliveries and high-quality products.
  • Custom Products: We offer customization in size, shape, and specifications to meet unique needs.
  • Fast Delivery: Reliable and on-time delivery options.
  • Good Reputation: Trusted by leading industries for our consistency and quality.
  • Timely Global After-Sales Service: Our support team is always ready to assist with any issues.

Development History


2010


Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.


2012

Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.


2014

Achieved ISO9001:2015 certification, ensuring high-quality production standards.


2016

Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.


2018

Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.


2020

Obtained AS9100D certification for aerospace industry compliance and advanced product quality.


2022

Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.


2024

Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.



Product Quality Management

Appearance and size inspection
Appearance and size inspection
Tensile test
Tensile test
Bending test
Bending test
Chemical composition analysis
Chemical composition analysis
Electrochemical performance test
Electrochemical performance test
Ultrasonic test
Ultrasonic test
Eddy current test
Eddy current test
Thickness test
Thickness test

Production and Processing

Titanium sponge raw materials
Titanium sponge raw materials
Titanium sponge processing and smelting
Titanium sponge processing and smelting
Titanium ingot forging
Titanium ingot forging
Machining
Machining
Manual grinding and polishing
Manual grinding and polishing
Manual testing
Manual testing

Workshop and Equipment

Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment
Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment


Packaging

Packaging

Packaging

Packaging

Packaging

Main Products

Titanium Anode
Titanium Anode
sinrer-metal-powder-filters
Sinrer-metal-powder-filters
Titanium Rod

Titanium Rod
Titanium Plate
Titanium Plate
Titanium Elbow
Titanium Elbow
TItanium Screw
Titanium Screw

Applied Industries

Be used in a wide range of industries.



Electrolytic copper foil manufacturing industry

Electrolytic copper foil manufacturing industry

Hydrometallurgy industry

Hydrometallurgy industry

Sewage treatment industry

Sewage treatment industry

Cyclone electrolysis industry

Cyclone electrolysis industry

Etching liquid electrolysis recovery industry

Etching liquid electrolysis recovery industry

Electrolytic sodium hypochlorite industry

Electrolytic sodium hypochlorite industry

OEM Services

We offer OEM services for companies requiring customized products. Whether you need specific sizes, alloy compositions, or surface treatments, we can provide precisely what you need.


Frequently Asked Questions (FAQs)

  1. What is the maximum thickness of the 016 titanium sheet?

    • The maximum thickness available is 50 mm.
  2. Can I customize the size of the titanium sheet?

    • Yes, we offer tailored sizes according to your requirements.
  3. What industries use the 016 titanium sheet?

    • Aerospace, medical, chemical, energy, and marine industries use it for various high-performance applications.
  4. What standards does the 016 titanium sheet meet?

    • It meets ASTM, JIS, and Russian standards.
  5. How do I place an order?

    • Simply contact us via email or phone, and we will assist you with your order.
