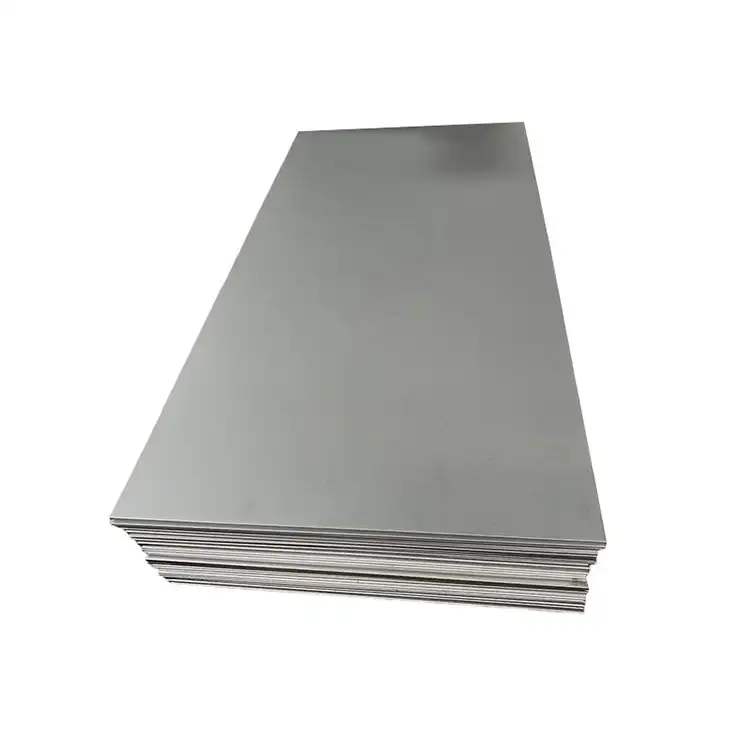

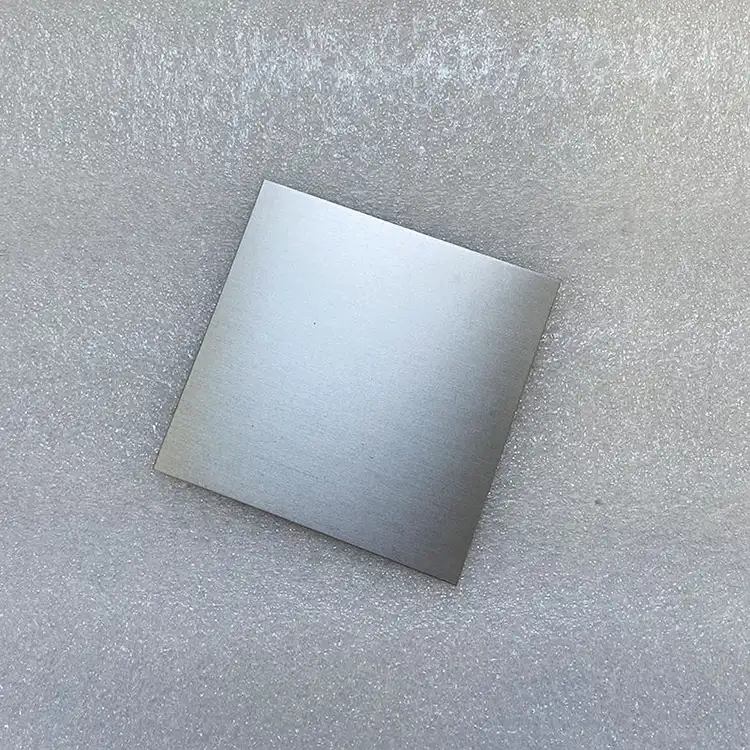

040 titanium sheet

1.High strength and exceptional corrosion resistance guaranteed.
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.
Product Description

Product Introduction

The 040 Titanium Sheet is a highly durable, lightweight metal that provides excellent performance in a variety of industrial applications. Renowned for its corrosion resistance, high strength-to-weight ratio, and biocompatibility, 040 titanium is the preferred material in sectors such as aerospace, medical, energy, and marine engineering. Our titanium sheets are produced using advanced manufacturing techniques, ensuring each product meets international quality standards.

Why Choose 040 Titanium Sheet?

  • Superior Strength-to-Weight Ratio: The product offers exceptional strength while being lightweight, making it ideal for applications where both performance and weight are critical.
  • Corrosion Resistance: Titanium is highly resistant to corrosion, including in harsh environments like seawater, chemicals, and high-temperature settings.
  • Biocompatibility: Titanium is commonly used in medical applications due to its excellent biocompatibility, ensuring safety for long-term use in the human body.
  • Versatility: With its diverse applications in industries such as aerospace, medical, energy, and marine engineering, it is a reliable choice for various needs.

Technical Specifications

Below are the detailed technical specifications of 040 Titanium Sheet, including common production grades and standards from the US, Russia, and Japan.

1. US Production Grades and Standards

Property Grade 2 Grade 5 Grade 9
Standard ASTM B265, ASTM F67 ASTM B265, AMS 4900 ASTM B265, AMS 4911
Chemical Composition Ti (balance), Fe 0.3%, O 0.18% Ti (balance), Al 6%, V 4% Ti (balance), Al 3%, V 2%
Yield Strength (min) 275 MPa 900 MPa 480 MPa
Tensile Strength 450-550 MPa 900-1,100 MPa 550-700 MPa
Elongation 20% 10-15% 15%

2. Russian Production Grades and Standards

Property Grade 2 Grade 5 Grade 7
Standard GOST 19807-91 GOST 19807-91 GOST 19807-91
Chemical Composition Ti (balance), Fe 0.25% Ti (balance), Al 6%, V 4% Ti (balance), Pd 0.12%
Yield Strength (min) 275 MPa 880 MPa 370 MPa
Tensile Strength 450-550 MPa 900-1,100 MPa 420-550 MPa
Elongation 20% 10-15% 15%

3. Japanese Production Grades and Standards

Property JIS 2 JIS 5 JIS 7
Standard JIS H 4650-2 JIS H 4650-5 JIS H 4650-7
Chemical Composition Ti (balance), Fe 0.25% Ti (balance), Al 6%, V 4% Ti (balance), Pd 0.12%
Yield Strength (min) 275 MPa 900 MPa 370 MPa
Tensile Strength 450-550 MPa 900-1,100 MPa 420-550 MPa
Elongation 20% 10-15% 15%
titanium plates titanium plates titanium plates titanium plates
titanium plates titanium plates titanium plates titanium plates

Product Features (Key Features)

  • High Strength: Offers excellent mechanical properties, including high tensile strength, which makes it perfect for structural and critical applications.
  • Lightweight: Ideal for reducing weight in aerospace and automotive applications without compromising strength.
  • Biocompatibility: Safe for medical implants and surgical instruments, making it a trusted material in healthcare.
  • Corrosion Resistance: Resists rust, oxidation, and corrosion even in extreme environments like marine, chemical, and medical fields.
  • Formability: Easy to machine, weld, and form into custom shapes, offering versatility in various manufacturing processes.

Applications

The product is widely used across many high-demand industries:

  • Aerospace and Aviation: For aircraft frames, engines, and components exposed to high temperatures and stress.
  • Medical Devices: Commonly used for implants, prosthetics, and surgical instruments due to its biocompatibility.
  • Chemical Processing: Ideal for reactors, heat exchangers, and storage tanks that need to resist corrosion from aggressive chemicals.
  • Energy Sector: Perfect for applications in nuclear power plants, wind turbines, and other high-energy environments.
  • Marine Engineering: Used in shipbuilding and offshore structures for its resistance to seawater corrosion.
  • Industrial Manufacturing: Employed in manufacturing components such as fasteners, tools, and machinery parts for various industries.

Manufacturing Process

Baoji Haiyue's products are manufactured using the latest in advanced technology:

  1. Raw Material Selection: We begin by sourcing high-grade titanium metal to ensure purity and performance.
  2. Rolling and Forging: Our sheets are produced through cold and hot rolling processes, ensuring uniform thickness and strength.
  3. Heat Treatment: Precision heat treatment ensures optimal mechanical properties and durability.
  4. Surface Treatment: The titanium sheets undergo surface treatment processes to enhance corrosion resistance and surface finish.
  5. Quality Control: Each sheet is rigorously tested using non-destructive testing methods such as ultrasonic and eddy current testing.

Quality Assurance

At Baoji Haiyue, we uphold strict quality standards to ensure that each product meets or exceeds industry specifications. We hold certifications including:

  • ISO 9001:2015
  • AS9100D (Aerospace Quality Management)
  • GJB9001C:2007 (Military Quality Management)

Our quality control team conducts thorough testing on every batch, ensuring high consistency and reliability in all our products.

Packaging and Logistics

We ensure safe and secure delivery of all our titanium sheets:

  • Packaging: Each titanium sheet is carefully packaged to prevent damage during transit. We use durable packaging materials and offer customized packaging solutions as required.
  • Logistics: We offer fast and reliable shipping worldwide, with door-to-door services available. Delivery timelines depend on your location and order volume.

Customer Support

Our customer support team is dedicated to providing you with comprehensive assistance at every step:

  • Pre-Sales Support: Assistance with selecting the right material for your needs.
  • Technical Consultation: Expert advice on material properties, machining, and applications.
  • After-Sales Service: Timely support for any issues or concerns with your order.

Why Choose Us

  • Complete Product Range: We offer a full range of titanium sheets, bars, tubes, and custom components.
  • One-Stop Solution: We provide end-to-end solutions from material selection to delivery.
  • Global Reach: Our products serve industries across North America, Europe, Asia-Pacific, and more.
  • Customization: Tailored products to meet your exact specifications.
  • Timely Delivery: We pride ourselves on fast and reliable delivery schedules.
  • Exceptional Service: Our global after-sales support ensures you're always taken care of.

Development History


2010


Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.


2012

Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.


2014

Achieved ISO9001:2015 certification, ensuring high-quality production standards.


2016

Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.


2018

Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.


2020

Obtained AS9100D certification for aerospace industry compliance and advanced product quality.


2022

Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.


2024

Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.



Product Quality Management

Appearance and size inspection
Appearance and size inspection
Tensile test
Tensile test
Bending test
Bending test
Chemical composition analysis
Chemical composition analysis
Electrochemical performance test
Electrochemical performance test
Ultrasonic test
Ultrasonic test
Eddy current test
Eddy current test
Thickness test
Thickness test

Production and Processing

Titanium sponge raw materials
Titanium sponge raw materials
Titanium sponge processing and smelting
Titanium sponge processing and smelting
Titanium ingot forging
Titanium ingot forging
Machining
Machining
Manual grinding and polishing
Manual grinding and polishing
Manual testing
Manual testing

Workshop and Equipment

Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment
Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment


Packaging

Packaging

Packaging

Packaging

Packaging

Main Products

Titanium Anode
Titanium Anode
sinrer-metal-powder-filters
Sinrer-metal-powder-filters
Titanium Rod

Titanium Rod
Titanium Plate
Titanium Plate
Titanium Elbow
Titanium Elbow
TItanium Screw
Titanium Screw

Applied Industries

Be used in a wide range of industries.



Electrolytic copper foil manufacturing industry

Electrolytic copper foil manufacturing industry

Hydrometallurgy industry

Hydrometallurgy industry

Sewage treatment industry

Sewage treatment industry

Cyclone electrolysis industry

Cyclone electrolysis industry

Etching liquid electrolysis recovery industry

Etching liquid electrolysis recovery industry

Electrolytic sodium hypochlorite industry

Electrolytic sodium hypochlorite industry

OEM Services

We provide OEM services for businesses that require custom-designed titanium products, whether it’s for bulk orders or specific technical needs. Our engineering team works closely with you to deliver precisely what you need.

Frequently Asked Questions (FAQs)

Q: What is the difference between Grade 2 and Grade 5 titanium sheets?
A: Grade 2 titanium is pure titanium, offering good corrosion resistance and formability. Grade 5 (Ti-6Al-4V) titanium is alloyed with aluminum and vanadium, providing higher strength and used in more demanding applications like aerospace.

Q: Can you supply titanium sheets in custom sizes?
A: Yes, we can provide titanium sheets in custom sizes and thicknesses to meet your specific requirements.

Q: What is the typical lead time for titanium sheet orders?
A: Lead times depend on the order size and customization. Typically, it ranges from 1 to 4 weeks.
