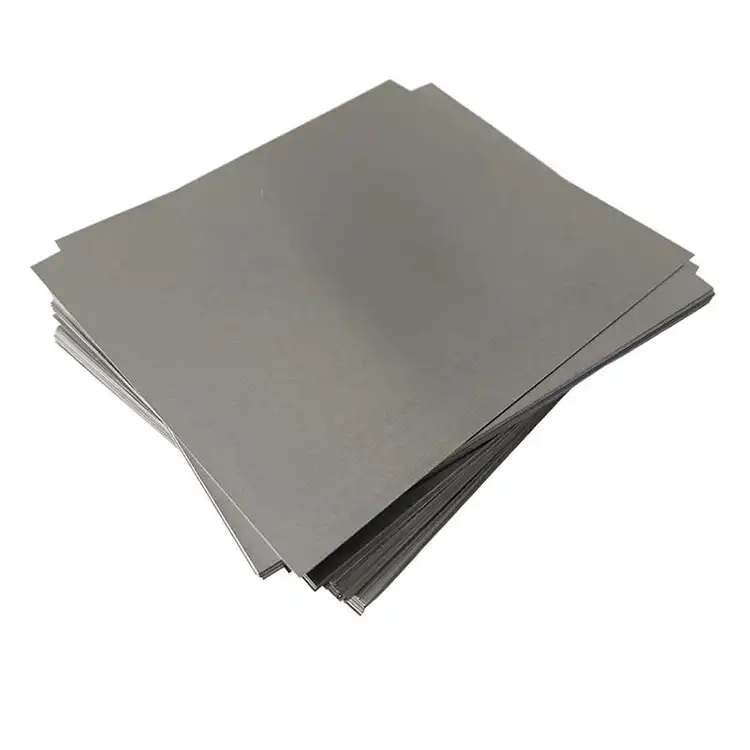

1/4 titanium plate

1.High strength and exceptional corrosion resistance guaranteed.
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.
Product Description

Product Introduction

Titanium is renowned for its outstanding strength-to-weight ratio, corrosion resistance, and biocompatibility, making it a popular choice across a range of industries. Among its various forms, the 1/4 titanium plate stands out for its versatility and reliability in demanding applications. Whether you’re in aerospace, medical devices, chemical processing, or energy sectors, the 1/4 titanium plate offers the durability and performance you need.

At Baoji Haiyue New Metal Materials Co., Ltd., we specialize in providing premium 1/4 titanium plates that are manufactured to meet the highest industry standards. Our products are ideal for both large enterprises and small-to-medium-sized businesses looking for a consistent supply of top-quality titanium plates.

Technical Specifications

Below are the detailed technical specifications for the 1/4 titanium plate. This includes the most commonly used grades and standards across the US, Russia, and Japan.

US Production Grades and Standards for 1/4 Titanium Plate

Property Grade 1 Grade 2 Grade 5 Grade 9
Composition Commercially Pure Titanium Commercially Pure Titanium Titanium Alloy (6Al-4V) Titanium Alloy (3Al-2.5V)
Tensile Strength 35-55 ksi 50-80 ksi 130-160 ksi 95-125 ksi
Yield Strength 20-35 ksi 40-70 ksi 120-150 ksi 80-110 ksi
Elongation 24% 20% 10% 12%
Hardness 120-150 HB 120-180 HB 330-400 HB 180-230 HB
ASTM Standard ASTM B265 ASTM B265 ASTM B265 ASTM B265

Russian Production Grades and Standards for 1/4 Titanium Plate

Property VT1-0 VT1-1 VT6 VT14
Composition Commercially Pure Titanium Commercially Pure Titanium Titanium Alloy (6Al-4V) Titanium Alloy (Al-Ti)
Tensile Strength 340 MPa 550 MPa 850 MPa 700 MPa
Yield Strength 200 MPa 300 MPa 800 MPa 650 MPa
Elongation 25% 20% 15% 18%
Hardness 100-130 HB 130-180 HB 350-400 HB 220-260 HB
GOST Standard GOST 2645-45 GOST 2645-45 GOST 2645-45 GOST 2645-45

Japanese Production Grades and Standards for 1/4 Titanium Plate

Property JIS 1 JIS 2 JIS 3 JIS 4
Composition Commercially Pure Titanium Commercially Pure Titanium Titanium Alloy (6Al-4V) Titanium Alloy (Ti-3Al-2.5V)
Tensile Strength 350 MPa 500 MPa 900 MPa 650 MPa
Yield Strength 220 MPa 350 MPa 850 MPa 600 MPa
Elongation 20% 18% 10% 15%
Hardness 120-140 HB 140-170 HB 350-400 HB 200-240 HB
JIS Standard JIS H4600 JIS H4600 JIS H4600 JIS H4600
titanium plates titanium plates titanium plates titanium plates
titanium plates titanium plates titanium plates titanium plates

Product Features

Our 1/4 titanium plates are engineered to deliver superior strength, lightweight properties, and unmatched durability. Key features include:

  • Exceptional Corrosion Resistance: Titanium’s inherent resistance to rust and corrosion makes it ideal for use in harsh environments, including chemical processing and marine engineering.
  • High Strength-to-Weight Ratio: The 1/4 titanium plate is an optimal choice for aerospace and automotive applications, offering high performance without the added weight.
  • Biocompatibility: Ideal for the medical industry, our titanium plates are suitable for implants, surgical tools, and prosthetics, ensuring safety and reliability.
  • Superior Weldability: Our plates are easy to fabricate, making them ideal for complex designs and custom manufacturing.
  • Long-lasting Durability: Titanium is known for its longevity, withstanding extreme temperatures and stress without degrading, making it perfect for energy sector applications, such as nuclear and wind turbine parts.

Applications

The 1/4 titanium plate is used in a variety of industries, including:

  • Aerospace & Aviation: Aircraft and spacecraft components, airframes, engine parts, and more.
  • Medical Devices: Surgical instruments, implants, dental devices, and prosthetics.
  • Chemical Processing: Heat exchangers, reactors, tanks, and pipes.
  • Energy Sector: Components for nuclear plants, solar energy equipment, and wind turbines.
  • Marine Engineering: Shipbuilding, offshore structures, and saltwater-resistant parts.
  • Industrial Manufacturing: Tools, fasteners, and machinery components.

Manufacturing Process

At Baoji Haiyue, we utilize state-of-the-art facilities to ensure precision and quality in every 1/4 titanium plate we produce. Our process includes:

  1. Material Selection: Only the highest-grade raw titanium is selected.
  2. Rolling & Forging: The titanium is hot-rolled and forged to achieve the desired plate thickness and mechanical properties.
  3. Cutting & Shaping: Plates are precision cut to size using advanced CNC machinery.
  4. Heat Treatment: Plates undergo controlled heat treatment processes to enhance strength and toughness.
  5. Surface Treatment: To ensure optimal surface finish and corrosion resistance, we apply advanced surface treatments like acid pickling and sandblasting.

Quality Assurance

We adhere to rigorous quality control processes at every stage of production. Our quality assurance practices include:

  • Material Inspection: We perform thorough inspections of raw materials before production.
  • In-process Testing: During manufacturing, we carry out ultrasonic testing, eddy current testing, and spectral analysis to ensure compliance with specifications.
  • Final Inspection: Every 1/4 titanium plate is subjected to final inspection to ensure it meets international standards (ASTM, ISO, AMS, etc.).

Packaging and Logistics

Our 1/4 titanium plates are packaged securely to prevent any damage during transportation. Packaging includes:

  • Wooden Crates for safe delivery.
  • Plastic Wrapping to protect the plates from environmental factors.
  • Customizable Options for bulk orders or specific packaging requirements.

Our logistics network ensures fast and reliable delivery worldwide, with options for air, sea, or land transportation.

Customer Support

We offer dedicated customer support to assist you in every step of your purchase:

  • Pre-sales Consultation: Our experienced engineers are available to help you choose the right titanium plates for your needs.
  • Order Tracking: Stay updated with real-time order tracking.
  • Technical Assistance: Our team provides ongoing support for technical inquiries and applications.
  • After-sales Service: We offer timely after-sales support to address any concerns post-purchase.

Why Choose Us

At Baoji Haiyue New Metal Materials Co., Ltd., we pride ourselves on delivering excellence. Here’s why our customers choose us:

  • Complete Product Range: We offer a full range of titanium products, from plates and bars to tubes and custom parts.
  • Full-process Production: Our facilities are equipped for all stages of manufacturing, from raw material processing to final delivery.
  • Global Reach: We serve customers in over 20 countries, ensuring that no matter where you are, we can meet your needs.
  • Fast Delivery: We understand the urgency of your business, and we prioritize quick, reliable delivery.
  • Reputation: Our commitment to quality and customer satisfaction has earned us a solid reputation in the industry.

Development History


2010


Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.


2012

Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.


2014

Achieved ISO9001:2015 certification, ensuring high-quality production standards.


2016

Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.


2018

Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.


2020

Obtained AS9100D certification for aerospace industry compliance and advanced product quality.


2022

Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.


2024

Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.



Product Quality Management

Appearance and size inspection
Appearance and size inspection
Tensile test
Tensile test
Bending test
Bending test
Chemical composition analysis
Chemical composition analysis
Electrochemical performance test
Electrochemical performance test
Ultrasonic test
Ultrasonic test
Eddy current test
Eddy current test
Thickness test
Thickness test

Production and Processing

Titanium sponge raw materials
Titanium sponge raw materials
Titanium sponge processing and smelting
Titanium sponge processing and smelting
Titanium ingot forging
Titanium ingot forging
Machining
Machining
Manual grinding and polishing
Manual grinding and polishing
Manual testing
Manual testing

Workshop and Equipment

Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment
Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment


Packaging

Packaging

Packaging

Packaging

Packaging

Main Products

Titanium Anode
Titanium Anode
sinrer-metal-powder-filters
Sinrer-metal-powder-filters
Titanium Rod

Titanium Rod
Titanium Plate
Titanium Plate
Titanium Elbow
Titanium Elbow
TItanium Screw
Titanium Screw

Applied Industries

Be used in a wide range of industries.



Electrolytic copper foil manufacturing industry

Electrolytic copper foil manufacturing industry

Hydrometallurgy industry

Hydrometallurgy industry

Sewage treatment industry

Sewage treatment industry

Cyclone electrolysis industry

Cyclone electrolysis industry

Etching liquid electrolysis recovery industry

Etching liquid electrolysis recovery industry

Electrolytic sodium hypochlorite industry

Electrolytic sodium hypochlorite industry

OEM Services

We offer custom solutions for customers looking for tailored sizes, grades, or shapes. Our team can work closely with you to ensure that your specific requirements are met.

Frequently Asked Questions (FAQs)

1. What is the lead time for 1/4 titanium plate?
Our standard lead time is 7-10 business days, but we also offer expedited options for urgent orders.

2. What certifications do you offer?
We provide ISO9001:2015, ASTM, AMS, and other relevant certifications to ensure the quality and compliance of our products.

3. Can I get a custom size?
Yes, we offer customized sizes based on your specific requirements.

4. What industries use 1/4 titanium plates?
Aerospace, medical, chemical
