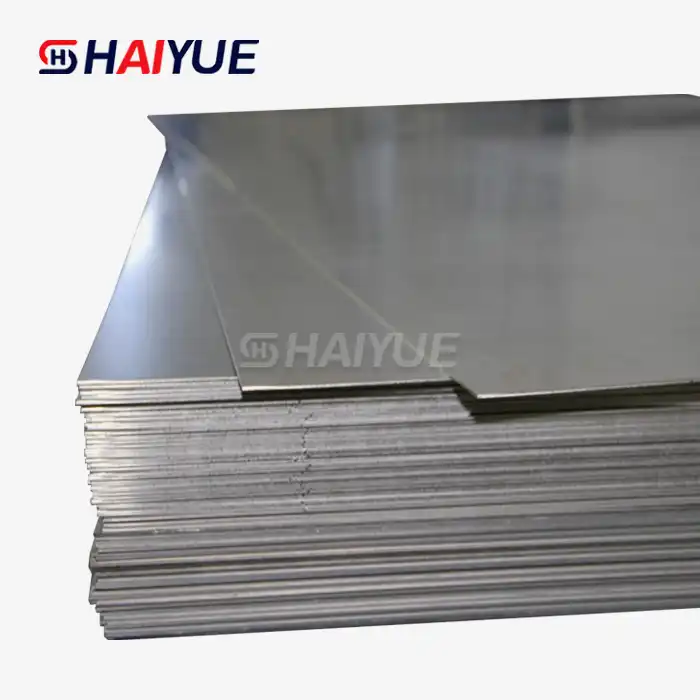

gr5 titanium plate

1.High strength and exceptional corrosion resistance guaranteed.
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.
Product Description

Gr5 Titanium Plate: High-Performance Material for Demanding Industries

Product Introduction

The Gr5 titanium plate, also known as Ti-6Al-4V, is a leading choice for industries that require strong, lightweight, and durable materials. Composed of 90% titanium, 6% aluminum, and 4% vanadium, this alloy offers an exceptional balance of strength, corrosion resistance, and biocompatibility, making it ideal for a wide range of high-performance applications. Whether you're in aerospace, medical, chemical processing, or energy sectors, the Gr5 titanium plate delivers the quality and reliability you need to maintain your operational excellence.

Technical Specifications

Below are the detailed specifications of the Gr5 titanium plate, highlighting its key attributes and production standards across various international markets.

Main Production Grades and Standards

Grade ASTM (USA) JIS (Japan) GOST (Russia)
Gr5 ASTM B265 JIS H4600 GOST 19807-89

Detailed Technical Specifications

Property Gr5 Titanium Plate
Composition 90% Titanium, 6% Aluminum, 4% Vanadium
Tensile Strength 895 MPa (min)
Yield Strength 828 MPa (min)
Elongation 10% (min)
Hardness 330 (Vickers)
Density 4.43 g/cm³
Thermal Conductivity 6.7 W/m·K
Modulus of Elasticity 113.8 GPa
Melting Point 1,660°C
Corrosion Resistance Excellent, especially in sea water and chemicals
titanium plates titanium plates titanium plates titanium plates
titanium plates titanium plates titanium plates titanium plates

Product Features (Key Features)

  • High Strength-to-Weight Ratio: Gr5 titanium plate is renowned for its strength, making it an excellent choice for applications requiring both lightweight and durable materials.
  • Corrosion Resistance: Titanium naturally resists corrosion, even in extreme environments, ensuring longevity and reliability.
  • Biocompatibility: It is widely used in medical implants due to its biocompatibility, offering a safe option for applications involving direct human contact.
  • Versatility: The Gr5 titanium plate is used across various industries, including aerospace, automotive, medical devices, and energy sectors.
  • Enhanced Weldability: This alloy is easy to weld and form into complex shapes without compromising its integrity, ensuring flexibility in design.

Applications

Gr5 titanium plates are utilized in a variety of critical industries due to their superior properties:

  • Aerospace: Aircraft and spacecraft components, including engine parts, airframes, and fasteners.
  • Medical: Implants, prosthetics, surgical instruments, and dental implants.
  • Chemical Processing: Reactors, heat exchangers, and other components that require resistance to corrosive environments.
  • Energy Sector: Nuclear power plants, solar panel frames, wind turbines, and geothermal energy systems.
  • Marine Engineering: Offshore platforms, submarines, and other structures exposed to seawater.
  • Industrial Manufacturing: Machine parts, tools, and fasteners that require high strength and corrosion resistance.

Manufacturing Process

The production of Gr5 titanium plates involves a series of highly controlled processes to ensure premium quality:

  1. Raw Material Selection: The first step is the careful selection of high-quality titanium ingots or scrap.
  2. Hot Rolling and Cold Rolling: The titanium is heated and passed through rollers to achieve the desired thickness and shape.
  3. Annealing: The plates are heat-treated to reduce internal stresses and enhance mechanical properties.
  4. Surface Treatment: The plates undergo surface treatments to improve corrosion resistance and appearance.
  5. Cutting and CNC Machining: Finally, the plates are cut into precise dimensions, often using CNC machines for custom orders.

Quality Assurance

At Baoji Haiyue New Metal Materials Co., Ltd., we prioritize quality at every stage of production. Our titanium plates undergo strict quality control processes, including:

  • Spectral Analysis: Ensuring the chemical composition meets the required standards.
  • Ultrasonic Testing: Detecting any internal flaws in the material.
  • Eddy Current Testing: Inspecting surface quality for any defects.
  • Tensile Testing: Verifying mechanical properties such as strength and elongation.
  • Dimensional Inspection: Ensuring precise measurements for custom orders.

Packaging and Logistics

We offer tailored packaging solutions to ensure safe and secure delivery of Gr5 titanium plates:

  • Custom Packaging: Plates are wrapped in protective materials to prevent damage during shipping.
  • Global Delivery: With a robust global logistics network, we ensure timely delivery to any location.
  • Documentation: Full certificates of compliance and quality assurance documents accompany each order.

Customer Support

Our customer support team is always ready to assist you with any questions or concerns. We provide:

  • Technical Support: Expert advice on material selection and applications.
  • Order Tracking: Real-time tracking of your shipments for peace of mind.
  • After-Sales Service: Assistance with installation, maintenance, and troubleshooting.

Why Choose Us

  • Comprehensive Product Range: We offer a wide variety of titanium and non-ferrous metal products.
  • Full-Process Production: From raw material sourcing to finished product, we handle every step.
  • Global Sales and Agency: Our products are sold across more than 20 countries.
  • Customized Solutions: Tailored sizes, shapes, and alloys to meet your specific requirements.
  • Fast Delivery: Quick turnaround times to meet your project deadlines.
  • Reputation: Known for reliability and superior customer service worldwide.

Development History


2010


Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.


2012

Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.


2014

Achieved ISO9001:2015 certification, ensuring high-quality production standards.


2016

Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.


2018

Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.


2020

Obtained AS9100D certification for aerospace industry compliance and advanced product quality.


2022

Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.


2024

Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.



Product Quality Management

Appearance and size inspection
Appearance and size inspection
Tensile test
Tensile test
Bending test
Bending test
Chemical composition analysis
Chemical composition analysis
Electrochemical performance test
Electrochemical performance test
Ultrasonic test
Ultrasonic test
Eddy current test
Eddy current test

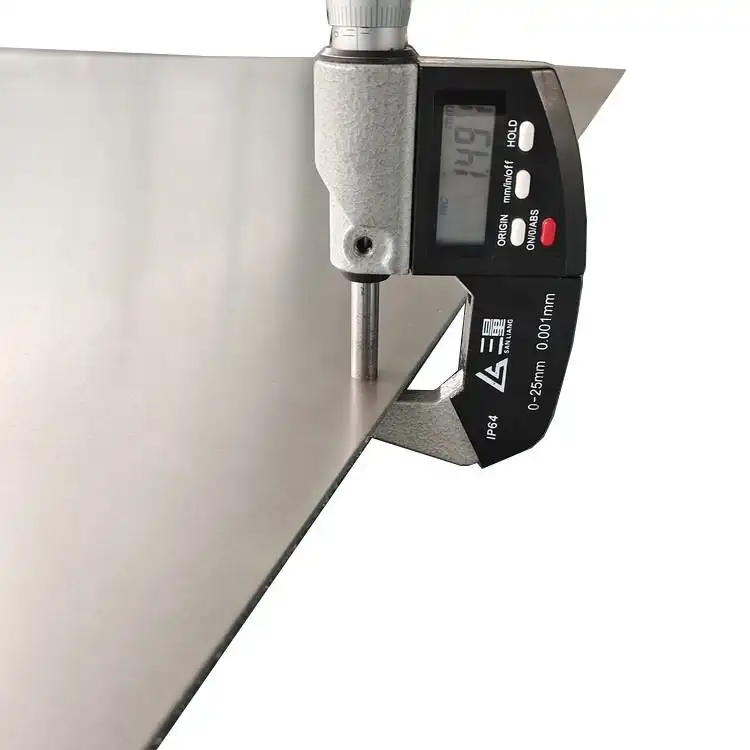

Thickness test
Thickness test

Production and Processing

Titanium sponge raw materials
Titanium sponge raw materials
Titanium sponge processing and smelting
Titanium sponge processing and smelting
Titanium ingot forging
Titanium ingot forging
Machining
Machining
Manual grinding and polishing
Manual grinding and polishing
Manual testing
Manual testing

Workshop and Equipment

Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment
Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment


Packaging

Packaging

Packaging

Packaging

Packaging

Main Products

Titanium Anode
Titanium Anode
sinrer-metal-powder-filters
Sinrer-metal-powder-filters
Titanium Rod

Titanium Rod
Titanium Plate
Titanium Plate
Titanium Elbow
Titanium Elbow
TItanium Screw
Titanium Screw

Applied Industries

Be used in a wide range of industries.



Electrolytic copper foil manufacturing industry

Electrolytic copper foil manufacturing industry

Hydrometallurgy industry

Hydrometallurgy industry

Sewage treatment industry

Sewage treatment industry

Cyclone electrolysis industry

Cyclone electrolysis industry

Etching liquid electrolysis recovery industry

Etching liquid electrolysis recovery industry

Electrolytic sodium hypochlorite industry

Electrolytic sodium hypochlorite industry

OEM Services

We offer flexible OEM services to meet the unique needs of our clients:

  • Custom Sizes and Shapes: We can tailor titanium plates to your specifications.
  • Special Alloys: Customized alloys to meet specific performance standards.
  • Prototyping: Rapid prototyping for testing and validation before large-scale production.

Frequently Asked Questions (FAQs)

  • What is the maximum temperature that Gr5 titanium plates can withstand? Gr5 titanium plates can withstand temperatures up to 400°C (752°F) without compromising their mechanical properties.

  • Are Gr5 titanium plates available in custom sizes? Yes, we offer customized dimensions based on your specific requirements.

  • Do you provide certifications for Gr5 titanium plates? Yes, each product comes with certification of compliance to international standards, including ASTM and ISO certifications.

  • What industries typically use Gr5 titanium plates? Aerospace, medical, energy, marine engineering, and chemical processing industries are the primary users of Gr5 titanium plates.
