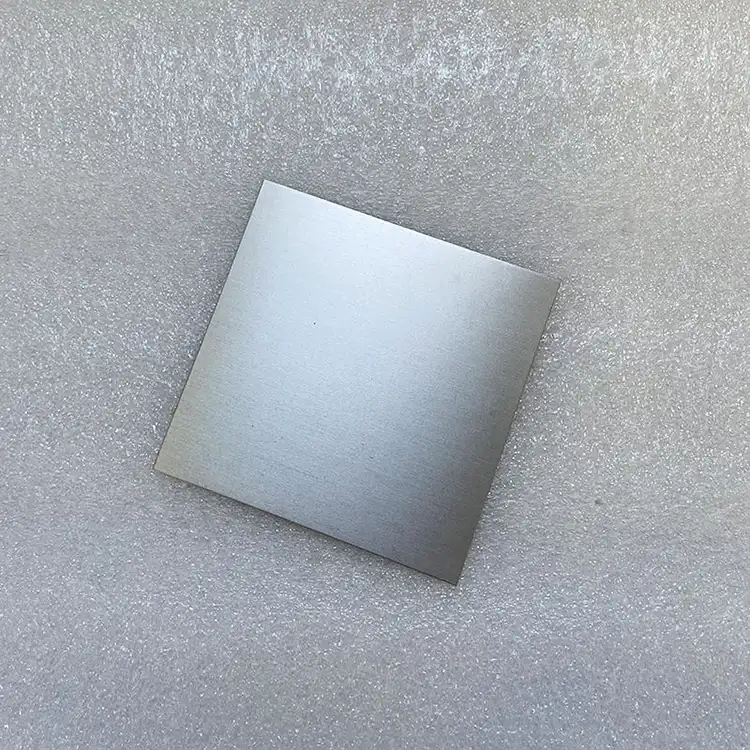

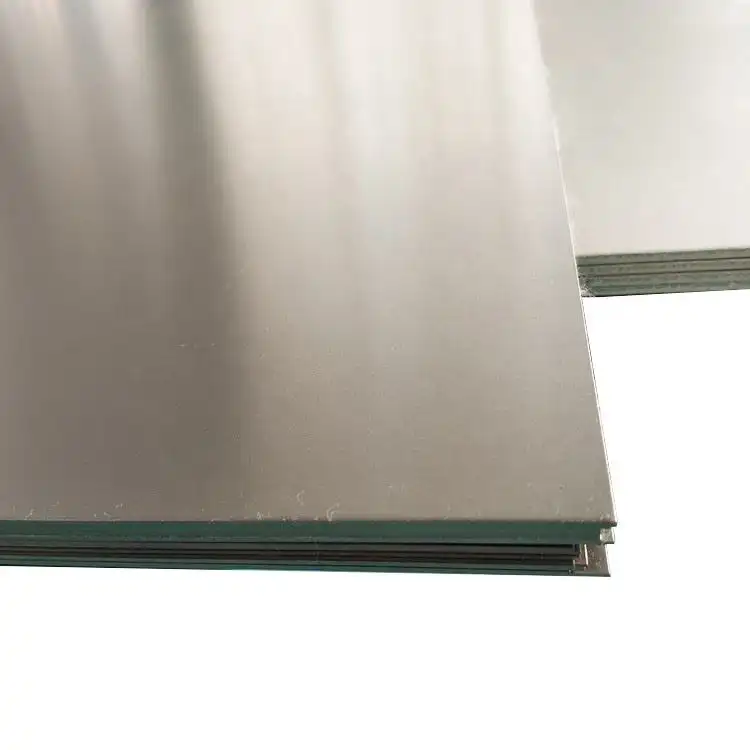

sheets of titanium

1.High strength and exceptional corrosion resistance guaranteed.
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.
Product Description

Product Introduction

Sheets of titanium are a critical material in various industries that require high strength, lightweight, and corrosion-resistant solutions. Baoji Haiyue New Metal Materials Co., Ltd. specializes in producing premium titanium sheets that meet international standards, including ASTM, ASME, and AMS. Known for their remarkable mechanical properties, titanium sheets are ideal for applications across aerospace, medical, energy, and other industries. Our titanium sheets are available in a range of grades and thicknesses to suit various applications. They are manufactured using state-of-the-art facilities and a rigorous quality control system, ensuring every product meets the highest performance standards.

Technical Specifications

Below are the key specifications for the sheets of titanium we offer. These specifications align with global standards, ensuring consistency and high performance across industries.

U.S. Production Grades and Standards

Property Grade 1 Grade 2 Grade 5 (Ti-6Al-4V)
Composition Pure Titanium Pure Titanium Ti-6Al-4V Alloy
Tensile Strength (MPa) 240 350 900
Yield Strength (MPa) 170 275 880
Elongation 24% 20% 10%
Hardness (HRB) 60 60 40
Density (g/cm³) 4.51 4.51 4.43
Standard ASTM B265 ASTM B265 ASTM B265

Russian Production Grades and Standards

Property Grade VT1-0 Grade VT1-1 Grade VT6-1
Composition Pure Titanium Pure Titanium Ti-6Al-4V Alloy
Tensile Strength (MPa) 240 340 900
Yield Strength (MPa) 160 270 860
Elongation 25% 20% 11%
Hardness (HRB) 58 60 40
Density (g/cm³) 4.50 4.50 4.43
Standard GOST 19807-91 GOST 19807-91 GOST 19807-91

Japanese Production Grades and Standards

Property JIS T 8101-1 JIS T 8101-2 JIS T 8101-3
Composition Pure Titanium Pure Titanium Ti-6Al-4V Alloy
Tensile Strength (MPa) 240 330 900
Yield Strength (MPa) 170 270 860
Elongation 20% 18% 12%
Hardness (HRB) 60 60 40
Density (g/cm³) 4.51 4.51 4.43
Standard JIS H 4100 JIS H 4100 JIS H 4100
titanium plates titanium plates titanium plates titanium plates
titanium plates titanium plates titanium plates titanium plates

Product Features (Key Features)

  • Lightweight: Titanium sheets are known for their excellent strength-to-weight ratio, making them ideal for industries where weight reduction is crucial, such as aerospace and automotive.
  • Corrosion-Resistant: Titanium is highly resistant to corrosion, even in harsh environments like seawater, making it perfect for marine applications.
  • High Strength: These sheets possess remarkable tensile and yield strength, providing durability and longevity in demanding applications.
  • Biocompatible: With exceptional biocompatibility, titanium sheets are used extensively in the medical field for implants and surgical instruments.
  • Versatility: Titanium sheets can be easily machined, welded, and fabricated to meet specific requirements for various applications.

Applications

Titanium sheets are used across numerous industries where high-performance materials are required:

  • Aerospace and Aviation: For aircraft structures, engine components, and spacecraft applications.
  • Medical Devices: Ideal for implants, surgical instruments, and prosthetics due to their biocompatibility.
  • Chemical Processing: Used in reactors, storage tanks, and piping systems due to their resistance to corrosion from aggressive chemicals.
  • Energy Sector: Essential in nuclear power plants, solar energy panels, and wind turbines for their ability to withstand extreme conditions.
  • Marine Engineering: In shipbuilding and offshore platforms, where resistance to saltwater corrosion is critical.
  • Industrial Manufacturing: Used in various machinery, tools, and fasteners for their durability and reliability.

Manufacturing Process

Our titanium sheets are produced using the latest technology and manufacturing techniques, ensuring consistency and quality. The key steps include:

  • Raw Material Selection: High-grade titanium sponge is sourced and inspected.
  • Melting & Alloying: The titanium is melted and alloyed in a vacuum arc remelting furnace.
  • Forming: Sheets are formed using rolling mills, ensuring uniform thickness and strength.
  • Heat Treatment: The sheets undergo heat treatment to improve their mechanical properties and ensure durability.
  • Surface Treatment: Surface treatment processes, such as pickling and polishing, enhance corrosion resistance.
  • Quality Control: Rigorous testing, including ultrasonic and eddy current testing, ensures the material meets the highest standards.

Quality Assurance

At Baoji Haiyue, quality is our top priority. We follow strict quality control procedures at every stage of production, ensuring that every sheet of titanium meets international standards. Our products undergo:

  • Spectral Analysis: To verify material composition.
  • Mechanical Testing: Tensile strength, elongation, and hardness tests.
  • Dimensional Inspection: To ensure precise thickness and flatness.
  • Corrosion Resistance Tests: To confirm performance in harsh environments.

Our products are certified under ISO9001:2015, AS9100D, and GJB9001C:2007, guaranteeing the highest quality.

Packaging and Logistics

Titanium sheets are carefully packaged to prevent any damage during transportation. Our packaging includes:

  • Protective Wrapping: To safeguard the sheets from scratches and environmental damage.
  • Custom Packaging: Tailored to the size and quantity of your order.
  • Global Shipping: We offer reliable shipping options to all parts of the world, ensuring timely delivery.

Customer Support

We provide comprehensive customer support throughout the purchasing process. Our dedicated team is here to:

  • Offer technical advice and product recommendations.
  • Assist with material selection based on your specific needs.
  • Provide after-sales support to ensure complete satisfaction.

Why Choose Us

  • Complete Product Range: We offer a full range of titanium sheets, bars, plates, and custom solutions.
  • Full-Process Production: From raw material to finished product, we manage every step of the production process.
  • One-Stop Solution: We handle all your titanium needs, offering a comprehensive suite of products and services.
  • Global Sales and Agency: Our products are trusted worldwide, with a network of agents in over 20 countries.
  • Customized Products: We offer tailored solutions to meet your unique specifications.
  • Fast Delivery: We pride ourselves on quick lead times and on-time delivery.
  • Timely Global After-Sales Service: Our global support ensures you're never alone.
  • Door-to-Door Service: We offer convenient, reliable delivery directly to your location.

Development History


2010


Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.


2012

Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.


2014

Achieved ISO9001:2015 certification, ensuring high-quality production standards.


2016

Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.


2018

Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.


2020

Obtained AS9100D certification for aerospace industry compliance and advanced product quality.


2022

Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.


2024

Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.



Product Quality Management

Appearance and size inspection
Appearance and size inspection
Tensile test
Tensile test
Bending test
Bending test
Chemical composition analysis
Chemical composition analysis
Electrochemical performance test
Electrochemical performance test
Ultrasonic test
Ultrasonic test
Eddy current test
Eddy current test
Thickness test
Thickness test

Production and Processing

Titanium sponge raw materials
Titanium sponge raw materials
Titanium sponge processing and smelting
Titanium sponge processing and smelting
Titanium ingot forging
Titanium ingot forging
Machining
Machining
Manual grinding and polishing
Manual grinding and polishing
Manual testing
Manual testing

Workshop and Equipment

Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment
Workshop and equipment
Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment

Workshop and equipment


Packaging

Packaging

Packaging

Packaging

Packaging

Main Products

Titanium Anode
Titanium Anode
sinrer-metal-powder-filters
Sinrer-metal-powder-filters

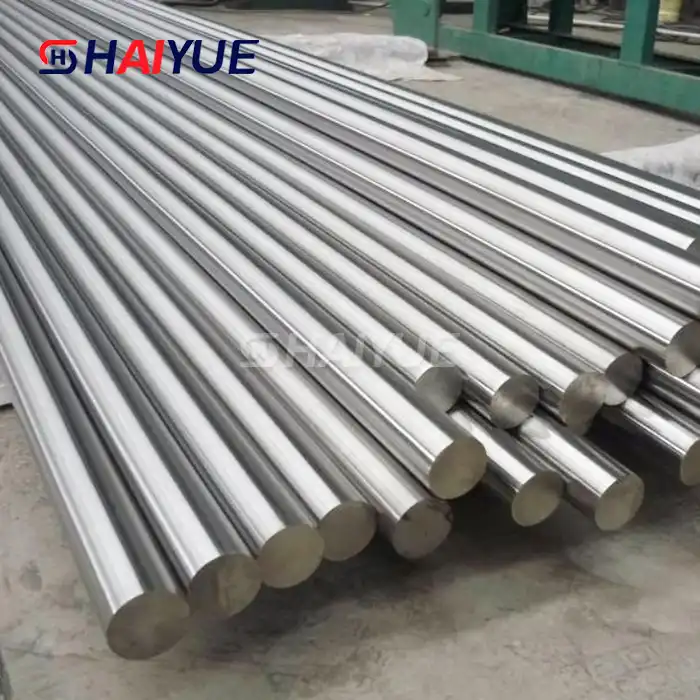

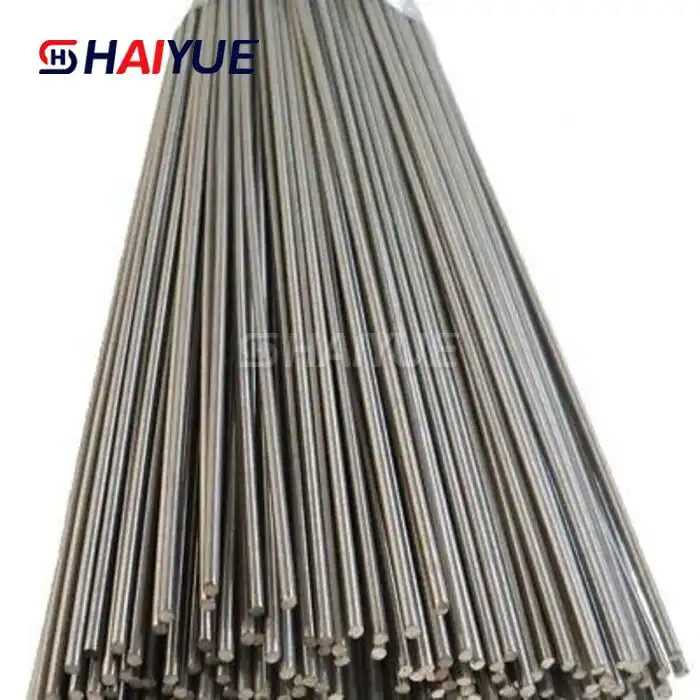

Titanium Rod

Titanium Rod
Titanium Plate
Titanium Plate
Titanium Elbow
Titanium Elbow

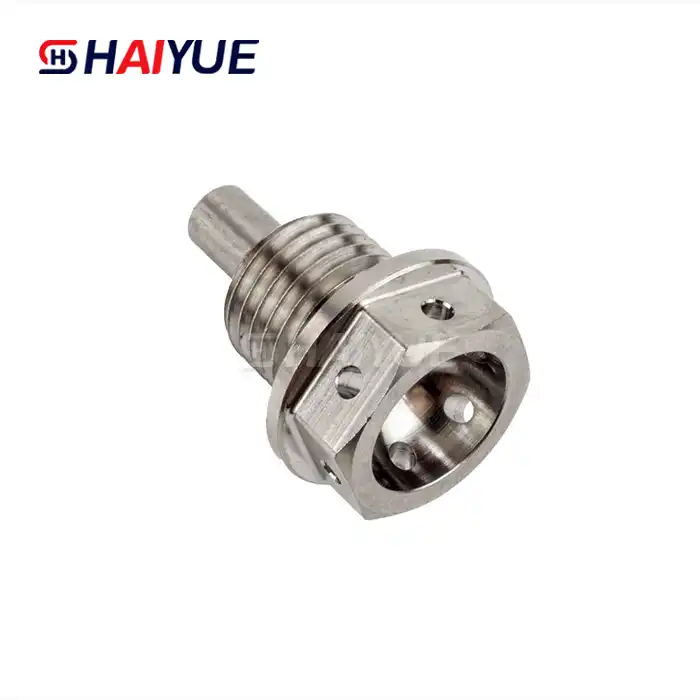

TItanium Screw
Titanium Screw

Applied Industries

Be used in a wide range of industries.



Electrolytic copper foil manufacturing industry

Electrolytic copper foil manufacturing industry

Hydrometallurgy industry

Hydrometallurgy industry

Sewage treatment industry

Sewage treatment industry

Cyclone electrolysis industry

Cyclone electrolysis industry

Etching liquid electrolysis recovery industry

Etching liquid electrolysis recovery industry

Electrolytic sodium hypochlorite industry

Electrolytic sodium hypochlorite industry

OEM Services

We offer OEM services for customized titanium sheet products. Whether you need specific dimensions, grades, or surface finishes, our team can meet your requirements. Our engineers work closely with you to develop the ideal solution for your needs.

Frequently Asked Questions (FAQs)

  1. What are the different grades of titanium sheets?

    • Titanium sheets are available in grades such as Grade 1, Grade 2, and Grade 5 (Ti-6Al-4V), each offering different properties suited for specific applications.
  2. Can titanium sheets be used in marine environments?

    • Yes, titanium sheets are highly resistant to corrosion, making them ideal for use in marine engineering and offshore structures.
  3. How do I know which titanium grade to choose?

    • The choice of titanium grade depends on factors such as strength requirements, corrosion resistance, and application-specific needs. Our team can assist in selecting the best grade for your project.

Contact Details

For more information or to request a quote, feel free to reach out:

Get in touch today to discover how our sheets of titanium can enhance your next project!
