titanium sheet grade 2
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.

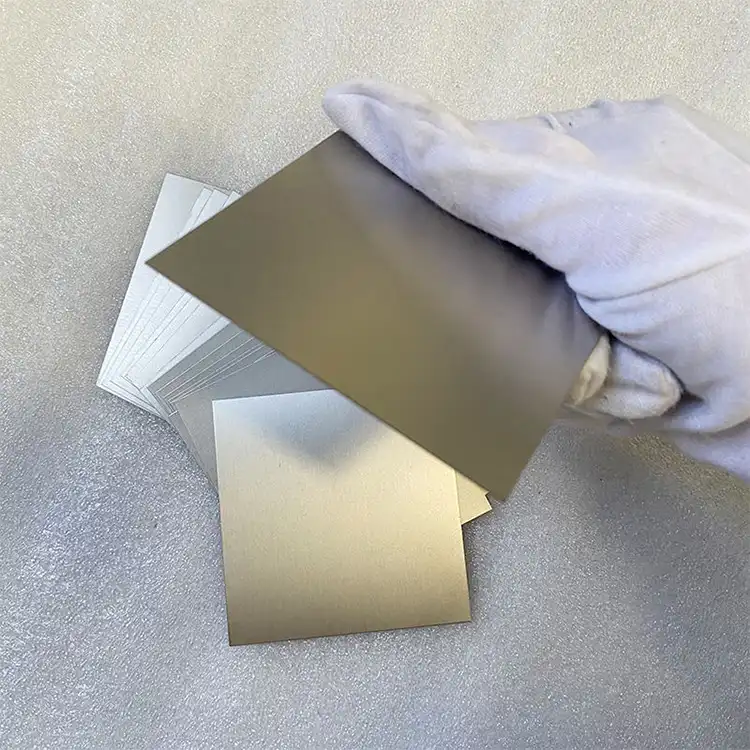

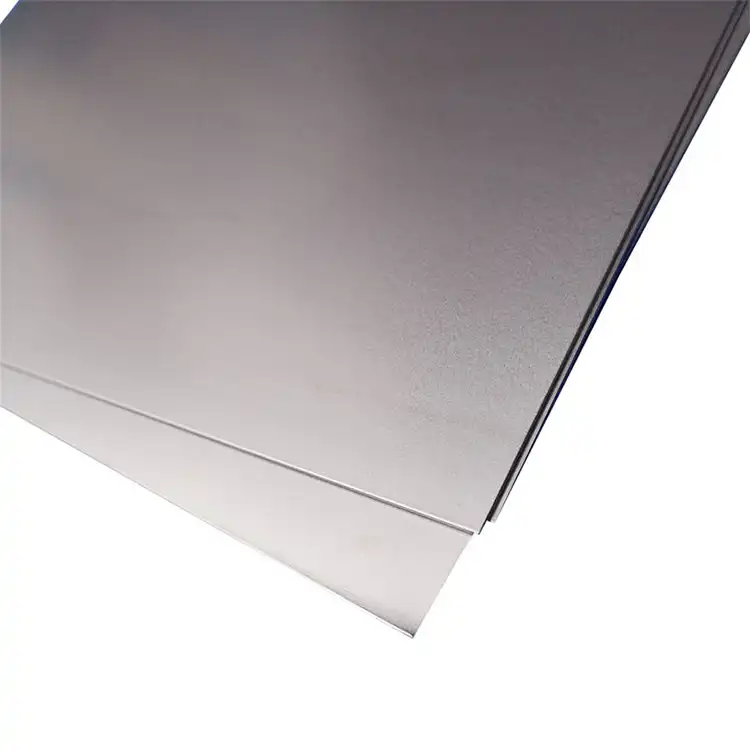

Titanium Sheet Grade 2: High-Quality Material for Precision Applications
Product Introduction
Titanium Sheet Grade 2, also known as commercially pure titanium, is a highly versatile and corrosion-resistant material, widely used in various industries. Known for its excellent combination of strength, formability, and resistance to environmental stressors, Titanium Sheet Grade 2 is ideal for applications requiring durability, light weight, and high performance. This material is particularly popular in aerospace, medical, chemical, and marine sectors due to its exceptional biocompatibility and non-corrosive properties.
Technical Specifications
Main Production Grades and Standards
| Standard | US | Russian | Japanese |
|---|---|---|---|
| Grade | ASTM B265 | GOST 19807-91 | JIS H 4600 |
| Alloy | Commercially Pure Titanium | Ti Grade 2 | Ti-Grade 2 |
| Chemical Composition | Ti: 99.2% min, Fe: 0.3% max, O: 0.25% max | Ti: 99.0% min | Ti: 99.0% min |
| Tensile Strength | 345 MPa min | 345 MPa min | 345 MPa min |
| Yield Strength | 275 MPa min | 275 MPa min | 275 MPa min |
| Elongation | 20% min | 20% min | 20% min |
| Density | 4.51 g/cm³ | 4.51 g/cm³ | 4.51 g/cm³ |
| Hardness | HRB 70 | HRB 70 | HRB 70 |
Physical Properties
| Property | Value |
|---|---|
| Melting Point | 1,668°C (3,034°F) |
| Thermal Conductivity | 21.9 W/m·K |
| Electrical Resistivity | 1.7 x 10^-7 Ω·m |
| Coefficient of Thermal Expansion | 8.6 x 10^-6/K |
Surface Finish and Tolerances
| Property | Value |
|---|---|
| Surface Finish | Polished, Matte, or Custom |
| Thickness Range | 0.5 mm to 50 mm |
| Width Range | 100 mm to 2,000 mm |
| Length Range | 100 mm to 6,000 mm |
| Tolerance | ± 0.1 mm (depending on thickness) |
 |
 |
 |
 |
 |
 |
 |
 |
Product Features (Key Features)
- Corrosion Resistance: Titanium Sheet Grade 2 is highly resistant to corrosion, making it an ideal choice for harsh chemical and marine environments.
- High Strength-to-Weight Ratio: The material provides excellent strength while maintaining a light weight, making it perfect for aerospace and automotive applications.
- Biocompatibility: Non-toxic and biocompatible, this grade of titanium is commonly used in medical implants and devices.
- Formability: Easily fabricated into various shapes and sizes, Titanium Sheet Grade 2 can be used in a range of manufacturing processes.
- Durability: Resistant to extreme temperatures and environments, ensuring long-term performance and reliability.
Applications
Titanium Sheet Grade 2 is widely used across many industries due to its unique properties:
- Aerospace: Used in aircraft structures, turbine blades, and exhaust systems.
- Medical Devices: Perfect for implants, prosthetics, and surgical instruments due to its biocompatibility.
- Chemical Processing: Ideal for reactors, piping, and storage tanks, as it resists corrosion from harsh chemicals.
- Marine Engineering: Essential for shipbuilding, offshore structures, and underwater applications due to its saltwater corrosion resistance.
- Energy: Suitable for use in nuclear power plants, wind turbines, and other energy sectors that require high-performance materials.
- Industrial Manufacturing: Common in the production of tools, fasteners, and components in machinery and equipment.
Manufacturing Process
Titanium Sheet Grade 2 is manufactured through several key processes to ensure its superior quality and performance:
- Extraction: Titanium is extracted from its ore through the Kroll process.
- Hot Rolling: The titanium material is heated and passed through rollers to form sheets of the desired thickness.
- Cold Rolling: The material is further processed at lower temperatures to refine its properties and dimensions.
- Annealing: To improve material properties and relieve stresses, the sheets are annealed at high temperatures.
- Cutting and Finishing: The titanium sheets are cut to size, polished, or finished according to customer requirements.
Quality Assurance
Baoji Haiyue New Metal Materials Co., Ltd. adheres to the highest standards of quality assurance. Our titanium sheets undergo rigorous testing and inspection to ensure they meet industry specifications and customer requirements. Our in-house laboratories perform tests including:
- Spectral Analysis: To verify chemical composition.
- Tensile and Yield Strength Testing: To ensure the material meets strength requirements.
- Surface Inspection: To detect any surface defects such as cracks or inclusions.
- Dimensional Accuracy: Ensuring the product adheres to specified tolerances.
Packaging and Logistics
Our titanium sheets are carefully packaged to prevent damage during transit. We use high-quality packaging materials and ensure that the products are securely placed in wooden crates, vacuum-sealed packs, or custom packaging depending on customer needs. We provide global shipping and handle logistics efficiently to ensure timely deliveries worldwide.
Customer Support
At Baoji Haiyue, we prioritize customer satisfaction. Our dedicated customer support team is available to assist with any inquiries, product selection, or technical questions. We offer prompt responses, expert guidance, and detailed information to ensure you receive the best solution for your needs.
Why Choose Us
- Comprehensive Product Range: We offer a full selection of titanium and other non-ferrous metal products to meet diverse industry needs.
- Full-Process Production: From raw material procurement to final product delivery, we handle all steps in the production process.
- Global Reach: Our products are distributed to over 20 countries, serving industries worldwide.
- Custom Solutions: We provide tailored solutions based on your specific requirements.
- Fast Delivery & Timely Service: We ensure that your orders are delivered on time, with efficient global logistics.
- Customer-Focused Approach: We aim to build long-term relationships based on trust, reliability, and excellent service.
Development History
Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.
Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.
Achieved ISO9001:2015 certification, ensuring high-quality production standards.
Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.
Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.
Obtained AS9100D certification for aerospace industry compliance and advanced product quality.
Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.
Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.
Product Quality Management
Production and Processing
Workshop and Equipment
Packaging
Main Products
Applied Industries
Be used in a wide range of industries.
Electrolytic copper foil manufacturing industry
Hydrometallurgy industry
Sewage treatment industry
Cyclone electrolysis industry
Etching liquid electrolysis recovery industry
Electrolytic sodium hypochlorite industry
OEM Services
We offer OEM services, allowing you to customize titanium sheets to meet your precise specifications. Whether you need specific dimensions, surface finishes, or performance characteristics, we can work with you to provide the best solution for your business.
Frequently Asked Questions (FAQs)
1. What industries use Titanium Sheet Grade 2? Titanium Sheet Grade 2 is commonly used in aerospace, medical, chemical processing, energy, marine engineering, and industrial manufacturing.
2. What are the primary benefits of using Titanium Sheet Grade 2? It offers corrosion resistance, a high strength-to-weight ratio, excellent biocompatibility, and formability, making it suitable for demanding applications.
3. What are the standard sizes available for Titanium Sheet Grade 2? We offer a wide range of sizes, including thicknesses from 0.5 mm to 50 mm, with widths up to 2,000 mm and lengths up to 6,000 mm.
