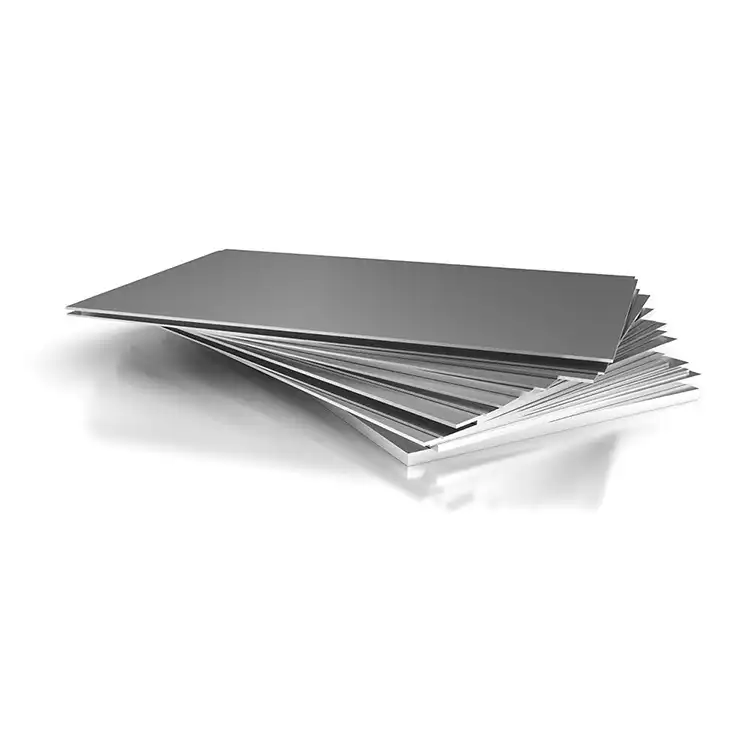

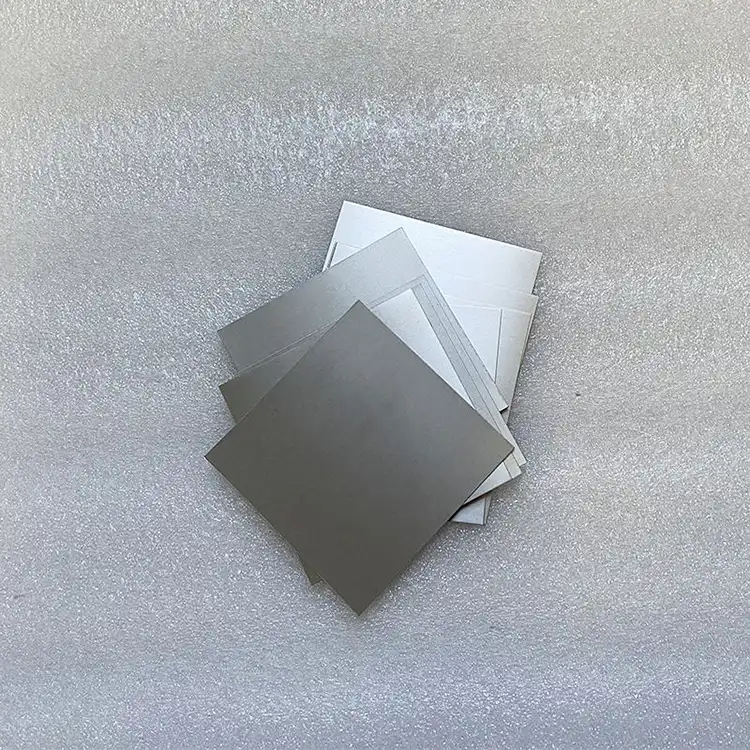

gr7 titanium sheet
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.

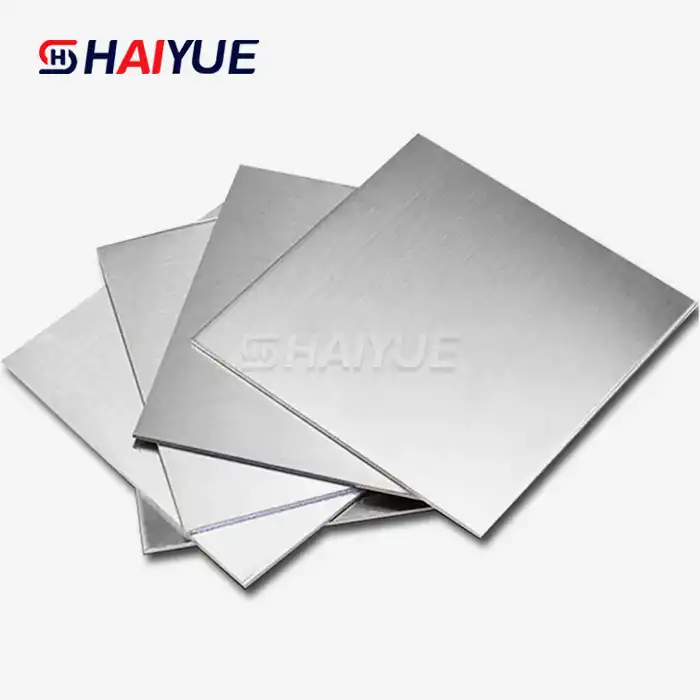

Gr7 Titanium Sheet: Premium Quality for Demanding Applications
Product Introduction
Gr7 titanium sheet is a premium material known for its excellent corrosion resistance, high strength-to-weight ratio, and exceptional biocompatibility. As a Grade 7 titanium alloy, it primarily contains 0.12% palladium, which enhances its resistance to corrosion, particularly in acidic environments. This makes Gr7 titanium sheet an ideal choice for industries such as aerospace, medical, chemical processing, energy, and marine engineering, where reliability and performance are paramount.
Baoji Haiyue New Metal Materials Co., Ltd. offers high-quality Gr7 titanium sheets that meet international standards, ensuring top-tier performance in even the most demanding environments. Our Gr7 titanium sheets are suitable for a wide range of applications, including aircraft components, medical devices, and chemical reactors. With our state-of-the-art manufacturing process and commitment to quality, we provide our customers with durable, high-performance titanium sheets.
Technical Specifications
| Specification | Gr7 Titanium Sheet |
|---|---|
| Material | Titanium Alloy Gr7 (Ti-0.12Pd) |
| Standard | ASTM B265, AMS 4911, ASME SB265 |
| Thickness Range | 0.5 mm to 100 mm |
| Width Range | Up to 1500 mm |
| Length Range | Up to 4000 mm |
| Density | 4.43 g/cm³ |
| Tensile Strength | 550 MPa (min) |
| Yield Strength | 480 MPa (min) |
| Elongation | 10% (min) |
| Hardness | 170 Vickers (min) |
| Modulus of Elasticity | 105 GPa |
| Thermal Conductivity | 21.9 W/m·K |
| Melting Point | 1668°C |
| Chemical Composition | Ti (Balance), Pd (0.12-0.25%), Fe (0.3%), C (0.08%), N (0.03%), O (0.2%) |
Production Grades and Standards
- US Standard: ASTM B265 Grade 7, AMS 4911
- Russian Standard: TU 14-1-3704-77, GOST 19807-74
- Japanese Standard: JIS H 4600, JIS Z 6203
 |
 |
 |
 |
 |
 |
 |
 |
Product Features
-
Corrosion Resistance: Gr7 titanium sheets offer outstanding resistance to corrosion, especially in acidic and chlorinated environments. The inclusion of palladium enhances the alloy's performance in harsh conditions, making it ideal for use in chemical processing and marine applications.
-
High Strength and Lightweight: The unique combination of strength and low weight makes Gr7 titanium an excellent choice for aerospace and medical applications, where both performance and weight are critical factors.
-
Biocompatibility: Gr7 titanium's non-reactivity and biocompatibility make it an ideal material for implants, surgical instruments, and prosthetics, ensuring safety and durability in the human body.
-
Versatility: This titanium alloy is used across a variety of industries, including aerospace, medical devices, chemical processing, and marine engineering. It can be easily fabricated into a range of forms, including sheets, plates, tubes, and custom components.
-
Durability: The material's resistance to wear, fatigue, and extreme temperatures ensures it performs reliably over long service periods in demanding environments.
Applications
Gr7 titanium sheets are widely used in industries that require high-performance, durable materials. Some key applications include:
-
Aerospace: Used for aircraft components like wings, fuselage, and engine parts, where strength and lightweight characteristics are essential.
-
Medical Devices: Ideal for implants such as hip and knee replacements, dental implants, and surgical instruments due to its biocompatibility and resistance to corrosion.
-
Chemical Processing: Used in reactors, heat exchangers, and piping systems that handle aggressive chemicals, thanks to its excellent resistance to corrosion in acidic environments.
-
Energy Sector: Gr7 titanium sheets are used in nuclear power plants, as well as for components in renewable energy systems such as wind turbines.
-
Marine Engineering: With excellent resistance to saltwater corrosion, Gr7 titanium is used in shipbuilding, offshore platforms, and marine equipment.
-
Industrial Manufacturing: Titanium sheets are used in a variety of tools, fasteners, and structural components that require strength and resistance to wear.
Manufacturing Process
Baoji Haiyue employs state-of-the-art manufacturing techniques to ensure that each Gr7 titanium sheet meets the highest standards of quality. The process includes:
- Raw Material Selection: We source high-purity titanium and palladium, ensuring consistency and performance.
- Hot and Cold Rolling: Our rolling mills produce titanium sheets with precise thickness and smooth surfaces.
- Annealing and Heat Treatment: Heat treatments are applied to enhance the material's mechanical properties, ensuring strength and durability.
- Cutting and CNC Machining: Sheets are precision-cut and, if required, machined to custom specifications.
- Surface Treatment: We offer a range of surface finishes, including pickling and polishing, to meet the specific needs of our customers.
Quality Assurance
At Baoji Haiyue, quality is our top priority. Our Gr7 titanium sheets undergo rigorous testing and quality control at every stage of production. This includes:
- Material Testing: Ultrasonic and eddy current testing to ensure material integrity.
- Mechanical Testing: Tensile, yield strength, elongation, and hardness tests are performed to verify the mechanical properties.
- Chemical Composition Analysis: Spectral analysis ensures that the alloy composition meets the specified standards.
- Surface Inspection: Visual and dimensional inspections ensure that the sheets meet the required standards for flatness, smoothness, and surface finish.
Packaging and Logistics
We ensure that our Gr7 titanium sheets are packaged securely to prevent damage during transit. Our packaging options include:
- Standard Packaging: Sheets are carefully wrapped and packed in wooden crates or cartons to protect against moisture, dust, and mechanical damage.
- Custom Packaging: For special requirements, we provide tailored packaging solutions to meet specific client needs.
- Global Delivery: We offer fast, reliable shipping to over 20 countries worldwide, ensuring that your order arrives on time, no matter where you are located.
Customer Support
Our dedicated support team is available to assist with any inquiries, from product specifications to technical advice. We pride ourselves on our responsive and customer-focused service. Whether you need help selecting the right product or have questions about our manufacturing process, our team is here to provide expert guidance.
Why Choose Us
- Complete Product Range: Baoji Haiyue offers a full range of titanium and non-ferrous metal products, including custom solutions to meet unique requirements.
- Full-Process Production: From raw material sourcing to final product delivery, we control every step of the production process to ensure top-tier quality.
- Global Sales and Agency: We have a global presence, with customers across North America, Europe, Asia, and the Middle East.
- Fast Delivery: With efficient production and logistics, we ensure quick turnaround times and reliable delivery.
- Timely After-Sales Service: Our dedicated customer service team provides global after-sales support to ensure your satisfaction.
- OEM Solutions: We offer customized solutions for your specific requirements, from tailored sizes to special alloys.
Development History
Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.
Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.
Achieved ISO9001:2015 certification, ensuring high-quality production standards.
Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.
Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.
Obtained AS9100D certification for aerospace industry compliance and advanced product quality.
Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.
Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.
Product Quality Management
Production and Processing
Workshop and Equipment
Packaging
Main Products
Applied Industries
Be used in a wide range of industries.
Electrolytic copper foil manufacturing industry
Hydrometallurgy industry
Sewage treatment industry
Cyclone electrolysis industry
Etching liquid electrolysis recovery industry
Electrolytic sodium hypochlorite industry
OEM Services
Baoji Haiyue provides OEM services for custom titanium sheet orders. Whether you need a specific size, shape, or alloy composition, our team can work with you to meet your exact specifications. We specialize in high-volume production and customized solutions for industries such as aerospace, medical, and energy.
Frequently Asked Questions (FAQs)
-
What is the maximum thickness available for Gr7 titanium sheets?
- The maximum thickness available is 100 mm.
-
Can you provide custom sizes for titanium sheets?
- Yes, we offer customized sizes based on your specific requirements.
-
What industries use Gr7 titanium sheets?
- Gr7 titanium sheets are used in aerospace, medical devices, chemical processing, energy, marine engineering, and industrial manufacturing.
-
What are the delivery times for Gr7 titanium sheets?
- Delivery times vary depending on the order volume and location, but we offer fast shipping worldwide.
-
Do you provide certificates for the materials?
- Yes, all our products come with certification, including material test reports and compliance with international standards.
