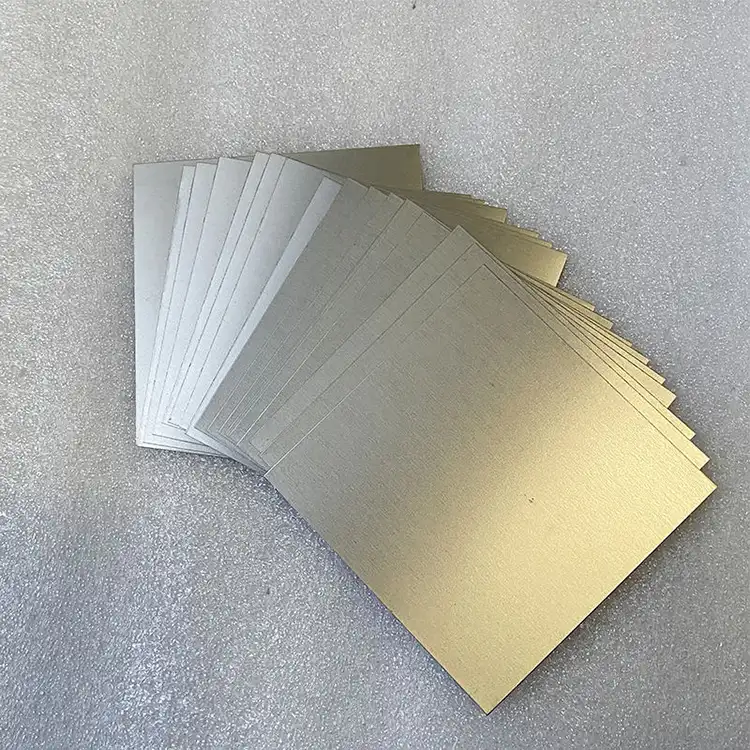

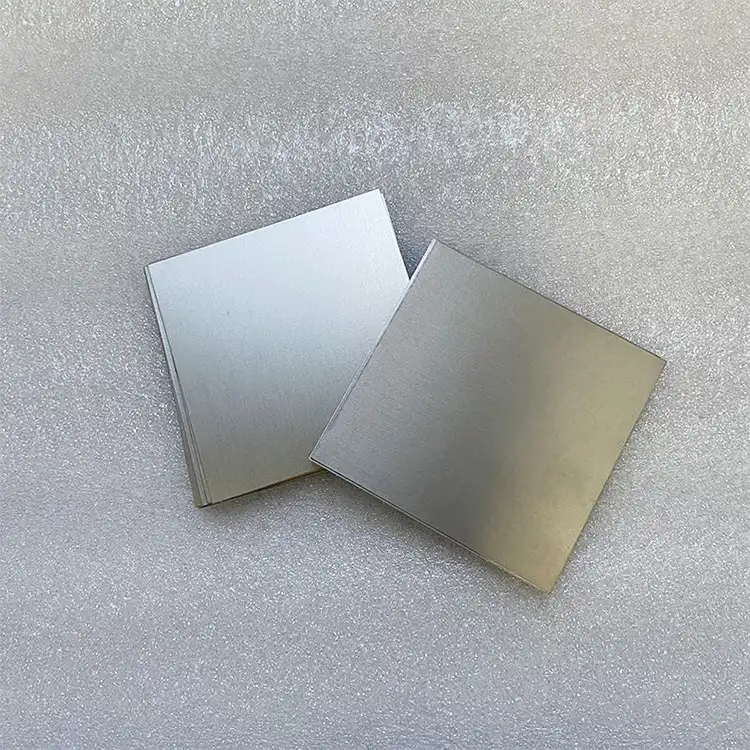

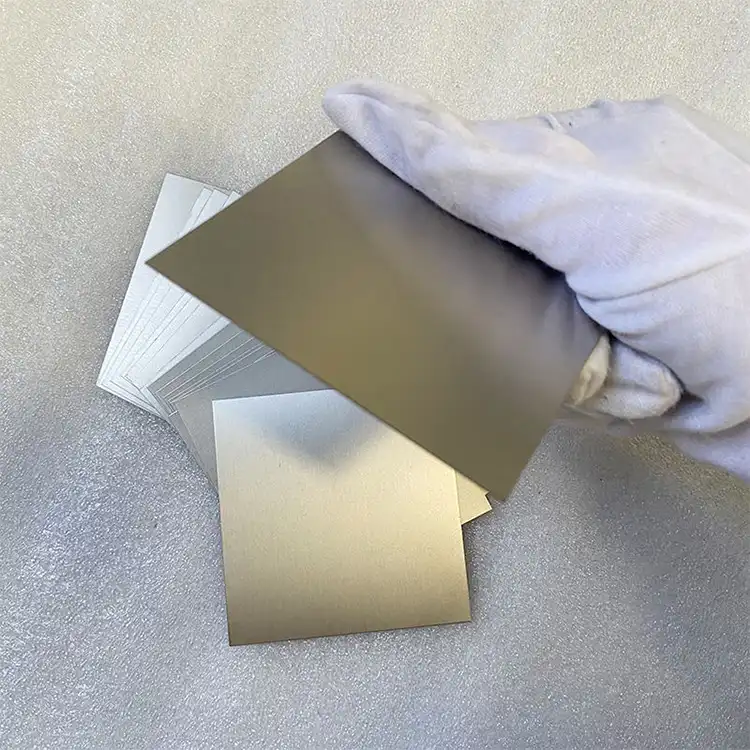

grade 9 titanium plate
2.Lightweight design, perfect for aerospace and marine industries.
3.Superior surface finish for reliable industrial applications.
4.Excellent weldability and formability for custom projects.
5.Precision thickness control ensures consistent performance.
Grade 9 Titanium Plate – High-Performance, Reliable, and Versatile
Welcome to Baoji Haiyue New Metal Materials Co., Ltd., your trusted partner for premium Grade 9 Titanium Plates. Known for their lightweight, high-strength properties, these titanium plates are designed for industries that demand exceptional performance. Whether you’re working in aerospace, medical, chemical processing, or marine engineering, our Grade 9 titanium plates are engineered to meet your toughest demands.
Product Introduction
Grade 9 titanium plate, also known as Ti-3Al-2.5V, is a specialized titanium alloy that is a combination of 90% titanium, 3% aluminum, and 2.5% vanadium. It stands out due to its excellent combination of strength, corrosion resistance, and formability, making it ideal for high-stress applications where performance and reliability are critical.
Grade 9 titanium is widely used in applications where both lightweight properties and high strength are required, such as in aerospace, medical implants, and marine structures. Known for its resistance to oxidation and corrosion, this alloy is perfect for environments where durability and longevity are paramount.
Technical Specifications
Below is a detailed overview of the technical specifications for Grade 9 Titanium Plate:
| Property | Grade 9 Titanium (Ti-3Al-2.5V) |
|---|---|
| Density | 4.43 g/cm³ |
| Tensile Strength | 900 MPa (min) |
| Yield Strength | 828 MPa (min) |
| Elongation at Break | 10% (min) |
| Hardness (Brinell) | 330 (max) |
| Modulus of Elasticity | 105 GPa |
| Thermal Conductivity | 21.9 W/m·K |
| Electrical Resistivity | 0.00024 Ω·m |
Production Standards:
| Country | Standard |
|---|---|
| USA | ASTM B265 (Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate) |
| Russia | GOST 19807-91 (Titanium and Titanium Alloy Plate) |
| Japan | JIS H 4100 (Titanium and Titanium Alloy Plate) |
 |
 |
 |
 |
 |
 |
 |
 |
Product Features (Key Features)
- High Strength-to-Weight Ratio: The alloy provides high strength while maintaining lightweight characteristics, making it ideal for aerospace and automotive applications.
- Corrosion Resistance: Grade 9 titanium plates offer excellent resistance to saltwater, acid, and alkaline environments, ensuring longevity in harsh environments like marine and chemical industries.
- Biocompatibility: Non-reactive with the human body, making it suitable for medical implants and surgical instruments.
- Formability and Weldability: Grade 9 titanium is easy to machine, weld, and fabricate into various shapes, allowing for flexibility in design and manufacturing processes.
- Cost-Effective: Compared to pure titanium, Grade 9 titanium offers an excellent balance between price and performance, making it a cost-effective choice for high-performance applications.
Applications
Grade 9 titanium plates are versatile and widely used in industries that require materials with exceptional performance:
- Aerospace: Aircraft and spacecraft components, including wing structures, fasteners, and engine parts.
- Medical Devices: Surgical implants, orthopedic devices, and dental materials due to its excellent biocompatibility and resistance to bodily fluids.
- Chemical Processing: Equipment used in the processing of chemicals, including reactors and pipes, which require resistance to corrosion and high strength.
- Marine Engineering: Marine structures, shipbuilding, and underwater equipment where resistance to saltwater corrosion is critical.
- Energy Sector: Components used in nuclear reactors, solar energy applications, and wind turbines.
- Industrial Manufacturing: Tools, fasteners, and machinery components where lightweight, high-strength materials are necessary.
Manufacturing Process
At Baoji Haiyue, we follow a strict and comprehensive manufacturing process to ensure that every Grade 9 Titanium Plate meets the highest standards of quality:
- Material Sourcing: We source high-purity titanium and alloying elements from trusted suppliers to ensure material integrity.
- Melting & Alloying: Using advanced Vacuum Arc Remelting (VAR) technology, we combine titanium with aluminum and vanadium to create a homogeneous alloy.
- Rolling & Forging: Plates are hot rolled and then cold rolled to achieve the desired thickness and surface finish.
- Heat Treatment: Our titanium plates undergo heat treatment to enhance their mechanical properties and relieve stresses.
- Surface Treatment: We offer various surface finishes, such as polished, sandblasted, or pickled, to meet specific customer requirements.
- Testing & Quality Control: Each batch of titanium plates undergoes rigorous testing using techniques such as ultrasonic testing, spectral analysis, and mechanical property testing.
Quality Assurance
Baoji Haiyue is committed to delivering only the highest quality products. Our Grade 9 titanium plates are tested at every stage of production to ensure they meet international standards. Our quality management system is certified under ISO 9001:2015, and we also hold AS9100D certification for the aerospace industry. We perform rigorous inspections for:
- Chemical Composition: To confirm compliance with ASTM, ISO, and other relevant standards.
- Mechanical Properties: Tensile strength, yield strength, elongation, and hardness are all tested to meet specifications.
- Dimensional Accuracy: Plates are measured for thickness, flatness, and surface finish to ensure consistency.
Packaging and Logistics
We understand the importance of secure and timely delivery. Our Grade 9 Titanium Plates are carefully packaged to prevent damage during transport. Packaging includes:
- Custom Wooden Crates: To protect against physical damage.
- Stretch Wrapping & Shrink Wrapping: To ensure no moisture or contaminants affect the product.
- Labeling: Each package is clearly labeled with product details and tracking information for easy identification.
- Global Shipping: Baoji Haiyue ships worldwide, ensuring prompt delivery to North America, Europe, Asia, and the Middle East. We work with trusted logistics partners to offer reliable and cost-effective shipping options.
Customer Support
Our customer support team is available to assist you throughout the purchasing process and beyond. Whether you need help with selecting the right product, tracking your order, or technical support, we are here to help.
- Email Support: jolina@bjhyti.com
- Phone Support: +86-18392721678
- Live Chat: Available on our website during business hours.
We are committed to providing timely and helpful support to ensure your complete satisfaction.
Why Choose Us
- Complete Product Range: Baoji Haiyue offers a full range of titanium products, including custom CNC machining and special orders.
- Global Sales & Agency Network: Our products are available worldwide with local agents to support you in your region.
- Fast Delivery: We offer quick turnaround times, ensuring that your orders arrive when you need them.
- Custom Solutions: We offer tailored products to meet specific customer requirements, ensuring you get exactly what you need.
- Reliable After-Sales Service: We offer prompt after-sales support, including door-to-door service.
Development History
Company founded in Baoji, "Titanium Valley," specializing in titanium and non-ferrous metals.
Expanded product range to include zirconium, tantalum, nickel, tungsten, and molybdenum products.
Achieved ISO9001:2015 certification, ensuring high-quality production standards.
Upgraded manufacturing facilities, adding VAR furnaces, CNC machinery, and advanced heat treatment systems.
Expanded global presence, establishing partnerships in the United States, Germany, and South Korea.
Obtained AS9100D certification for aerospace industry compliance and advanced product quality.
Introduced customized solutions for the aerospace, medical, and energy industries, enhancing global reach.
Celebrated 14 years of excellence with over 2,000 tons of annual titanium production capacity.
Product Quality Management
Production and Processing
Workshop and Equipment
Packaging
Main Products
Applied Industries
Be used in a wide range of industries.
Electrolytic copper foil manufacturing industry
Hydrometallurgy industry
Sewage treatment industry
Cyclone electrolysis industry
Etching liquid electrolysis recovery industry
Electrolytic sodium hypochlorite industry
OEM Services
We provide comprehensive OEM services, allowing customers to customize Grade 9 titanium plates according to their specific requirements. Whether you need custom dimensions, machining, or surface treatments, our experienced engineers are here to work with you on your projects.
Frequently Asked Questions (FAQs)
Q: What industries use Grade 9 titanium plates?
A: Grade 9 titanium plates are used in aerospace, medical, chemical processing, energy, marine engineering, and industrial manufacturing.
Q: What are the key benefits of using Grade 9 titanium plates?
A: The key benefits include high strength-to-weight ratio, excellent corrosion resistance, biocompatibility, and ease of fabrication.
Q: Can you provide customized sizes and shapes?
A: Yes, we offer custom dimensions and machining services based on your requirements.
Q: What is the lead time for orders?
A: Lead times vary depending on the size and complexity of your order, but we typically deliver within 2-4 weeks.
Contact Details
For more information, quotes, or any other inquiries, please don’t hesitate to reach out:
- Email:Jolina@bjhyti.com
- Phone: +86-18392721678
